SMDC0035 Ceramic/Ferrite Disc Magnet | Stanford Magnets

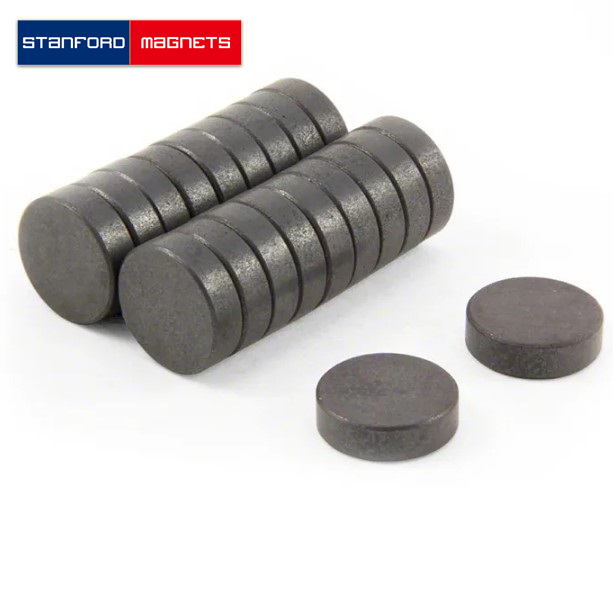

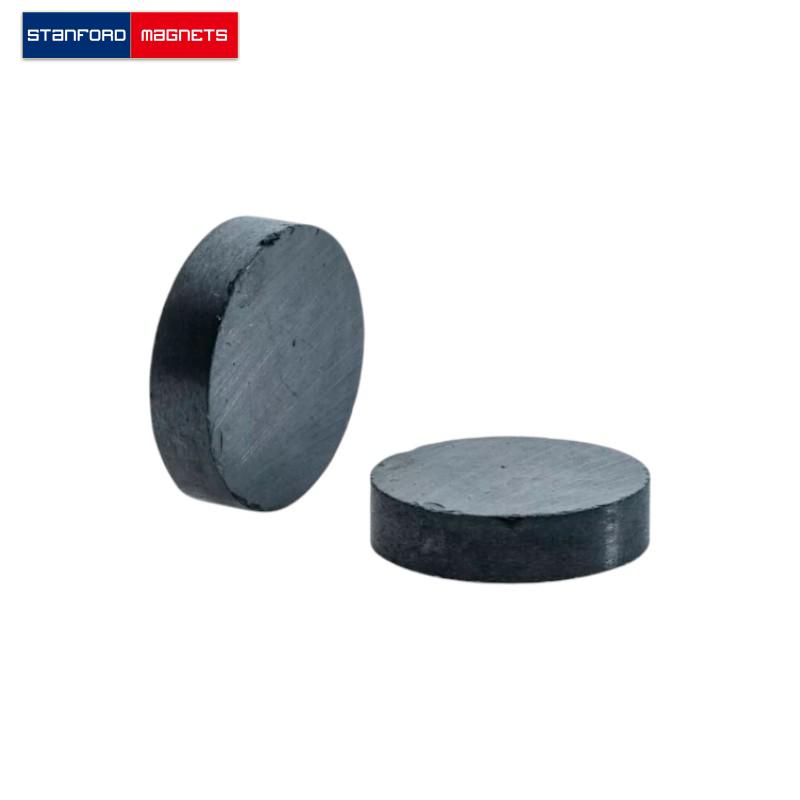

SMDC0035 Ceramic/Ferrite Disc Magnet

Product ID: SMDC0035
Material: Ferrite
Shape: Disc
Dimension: 25mm dia x 3mm Thickness
Grade: C1
Coating: Magnets Requiring no Protective Coating
Pull Force(Lbs): 0.5
Surface Field(Gauss): 500
Magnetization Direction: Through Thickness
Magnetic Face: 25mm dia

INQUIRY Can't Find The Size

Follow Us On


Description

The SMDC0035 Ceramic/Ferrite Disc Magnet is made from high-performance C1 Ferrite, without other protective coatings.

SMDC0035 Ceramic/Ferrite Disc Magnet Description

Ceramic magnet material (Ferrite) is one of the most cost-effective magnetic materials, it has a fair to good resistance toward corrosion and it can operate in moderate heat.
Ceramic (Ferrite) magnets have low-energy products and they are usually used in assemblies containing mild steel.

SMDC0035 Ceramic/Ferrite Disc Magnet Application

TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine products, Magnetic Sports products, etc.
