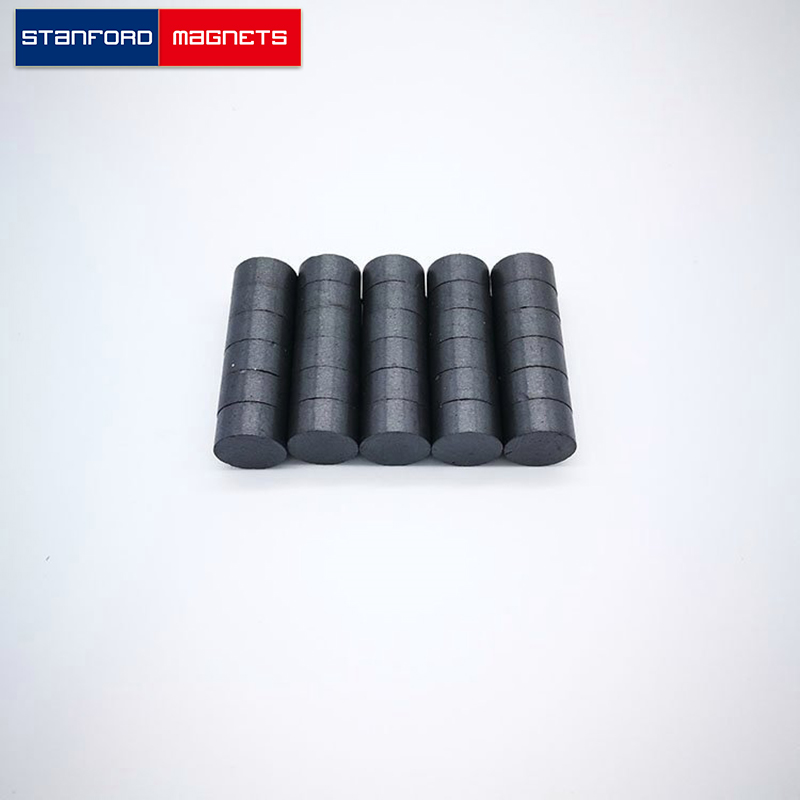

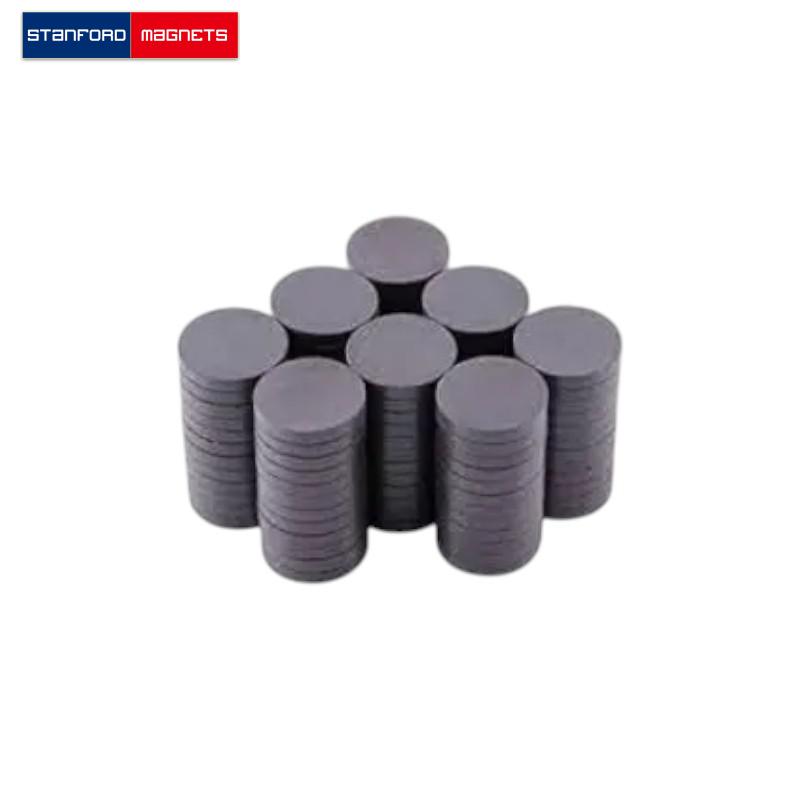

SMDC0038 Ceramic/Ferrite Disc Magnet

Product ID: SMDC0038

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

The SMDC0038 Ceramic/Ferrite Disc Magnet is made from high-performance C8 Ferrite, without other protective coatings.

CERAMIC/FERRITE DISC MAGNET CHARACTERISTICS

Magnetic Characteristics of Sintered Ferrite (USA Standard)
Material	Br		Hcb		Hcj		(BH)max
Material	mT	KG	KA/m	KOe	KA/m	KOe	KJ/m3	MGOe
C1	230	2.3	148	1.86	258	3.5	8.36	1.05
C5	380	3.8	191	2.4	199	2.5	27	3.4
C7	340	3.4	258	3.23	318	4	21.9	2.75
C8(C8A)	385	3.85	235	2.95	242	3.05	27.8	3.5
C9	380	3.8	280	3.516	320	4.01	26.4	3.32
C10	400	4	288	3.617	280	3.51	30.4	3.82
C11	430	4.3	200	2.512	204	2.56	34.4	4.32

CERAMIC/FERRITE DISC MAGNET APPLICATIONS

Ferrites belong to the class of semiconductors electronically, so they are also called magnetic semiconductors. Magnetite (the key ingredient is Fe3O4) is a simple ferrite. Ferrite has been widely used in communication, broadcasting, computing, automatic control, radar navigation, space navigation, satellite communication, instrument measurement, printing, pollution treatment, biomedicine, high-speed transportation, and so on. The products of permanent magnet ferrite are mainly anisotropic series. They can be used in the manufacture of permanent magnet starting motors, permanent magnet motors, permanent magnet concentrators, permanent magnet hangers, magnetic thrust bearings, broadband magnetic separators, loudspeakers, microwave equipment, magnetic therapy sheets, hearing AIDS, and so on.
