SMDC6PC-BLK Rubber Coated Magnets - Stanford Magnets

SMDC6PC-BLK Rubber Coated Magnets

Dimensions: 3/4″ dia. x 3/8″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni-Plastic
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.718 oz. (20.4 g)
Pull Force, Case 1: 10.86 lbs
Pull Force, Case 2: 17.77 lbs
Surface Field: 4667 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

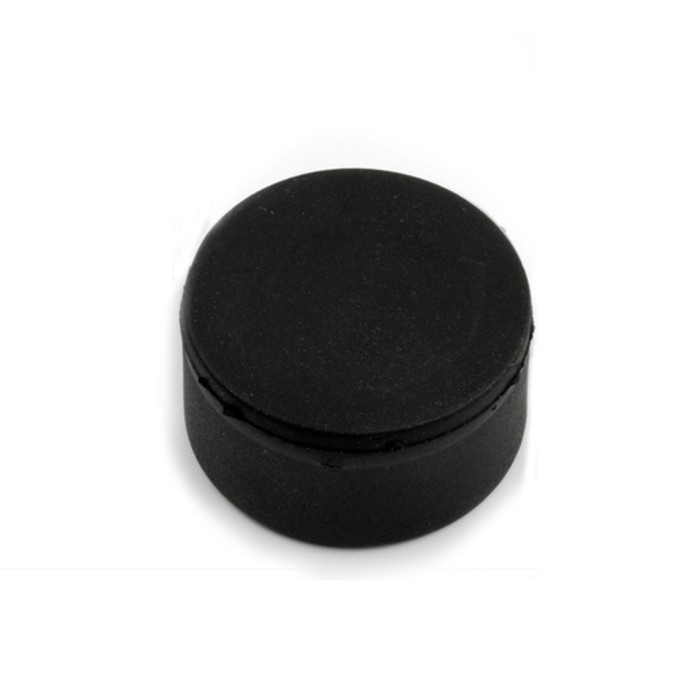

These great magnets are coated with a durable layer of plastic. The 3/4″ x 3/8″ dimensions are the finished dimensions of the plastic coating. These discs can be slammed together many times without damage. They won”t mark or scratch surfaces they come in contact with. They are also completely waterproof and weatherproof.Please note: Slight color variation may occur from order to order.
