SMDN0012 Neodymium Disc Magnet

Product ID: SMDN0012
Material: NdFeB
Shape: Disc
Dimension: 3/16” dia. x 1/32” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.0037
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 0.43
Surface Field(Gauss): 2340
Magnetization Direction: Through Thickness
Magnetic Face: 3/16″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

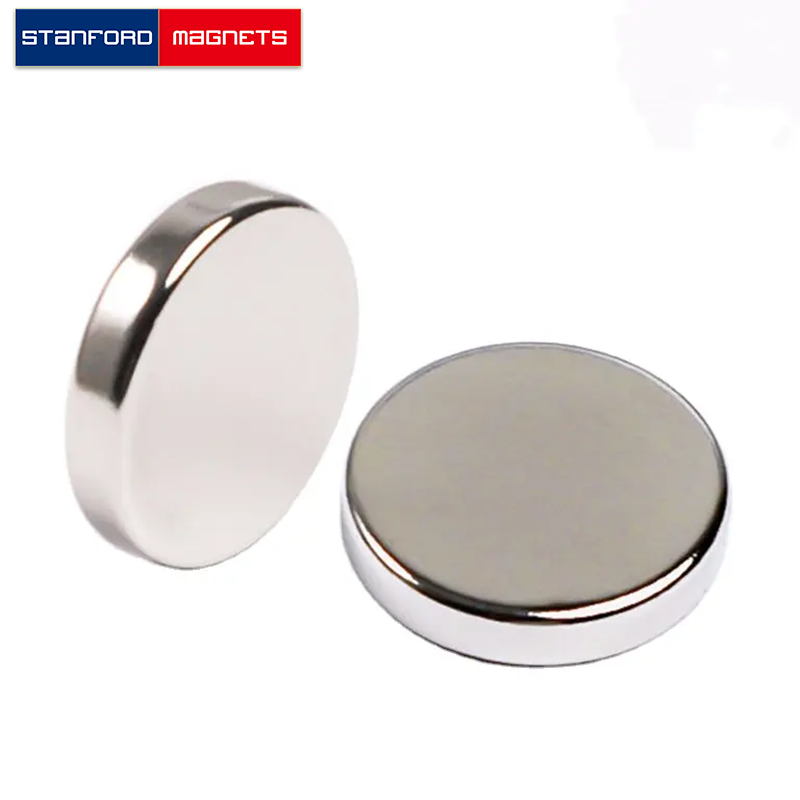

SMDN0012 Neodymium Disc Magnet Introduction

The SMDN0012 DISC neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/16″ dia. × 1/32″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00023375 lbs. It can pull up to 0.43 lbs steel. And the surface field is up to 2340 gausses.

SMDN0012 Neodymium Disc Magnet Safety Tips

The smdn0012 neodymium disc magnet is so small that Children could swallow it easily. If several magnets are swallowed, they could get stuck in the intestine and cause perilous complications. Magnets are not toys. Make sure that children do not play with the smdn0012 neodymium disc magnet. The smdn0012 neodymium disc magnet could also be used as like push pins and fridge magnets. keep track of all rare earth magnets in a home, not just those located in toys.
