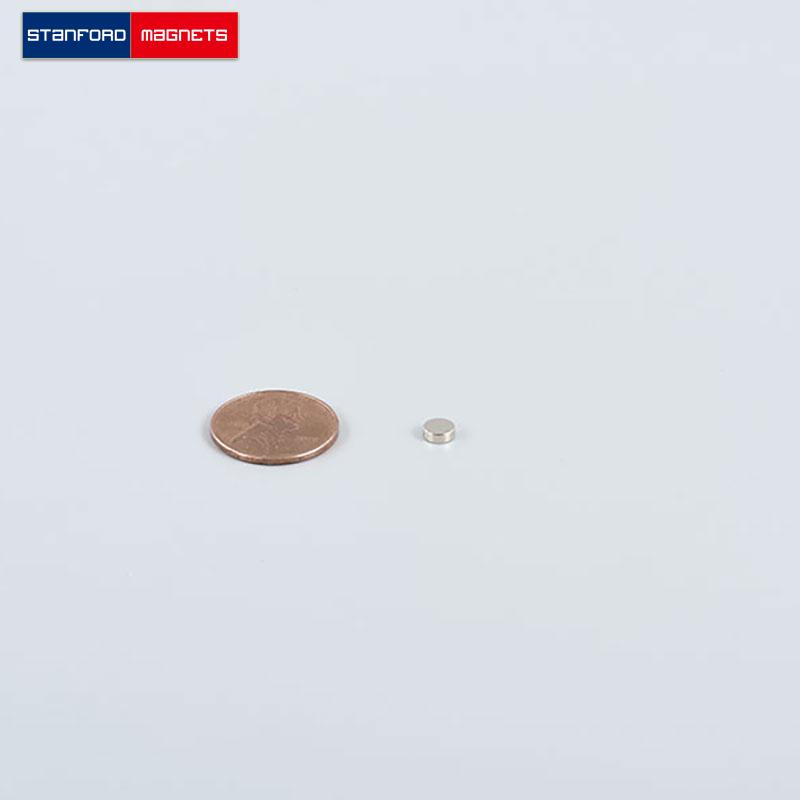

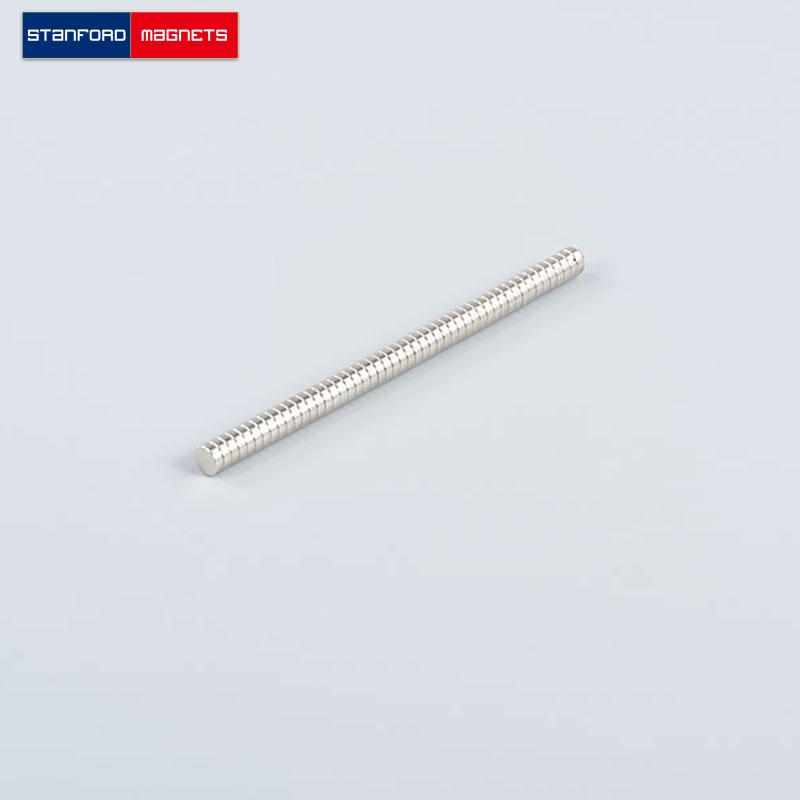

SMDN0013 Neodymium DISC Magnet - Stanford Magnets

SMDN0013 Neodymium DISC Magnet

The SMDN0013 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/16″ dia. × 1/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0004675 lbs. It can pull up to 0.75 lbs steel. And the surface field is up to 3661 gauss.SMDN0013 Neodymium DISC Magnet Safety TipsThe smdn0013 neodymium disc magnet is so small that Children could swallow it easily. If several magnets are swallowed, they could get stuck in the intestine and cause perilous complications.Magnets are not toys. Make sure that children do not play with the smdn0013 neodymium disc magnet.The smdn0013 neodymium disc magnet could also be used as like push pins and fridge magnets. keep track of all rare earth magnets in a home, not just those located in toys.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0013
Material: NdFeB
Shape: Disc
Dimension: 3/16” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.0075
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 0.75
Surface Field(Gauss): 3661
Magnetization direction: Through Thickness
Magnetic Face: 3/16″ dia.
Max Operating Temp(C/F): 80/176 SMDN0013 Neodymium DISC Magnet Safety Tips
The smdn0013 neodymium disc magnet is so small that Children could swallow it easily. If several magnets are swallowed, they could get stuck in the intestine and cause perilous complications.

Magnets are not toys. Make sure that children do not play with the smdn0013 neodymium disc magnet.
The smdn0013 neodymium disc magnet could also be used as like push pins and fridge magnets. keep track of all rare earth magnets in a home, not just those located in toys.
