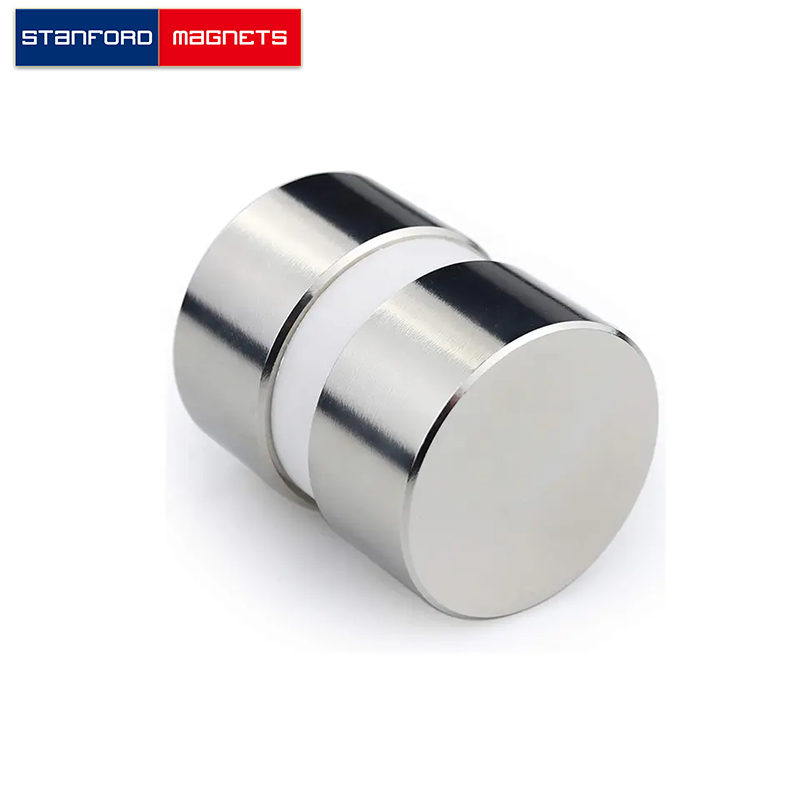

SMDN0018 Neodymium DISC Magnet

The SMDN0018 DISC neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/16″ dia. × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0009375 lbs. It can pull up to 1.7 lbs steel. And the surface field is up to 5920 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0018
Material: NdFeB
Shape: Disc
Dimension: 3/16” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.015
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.7
Surface Field(Gauss): 5920
Magnetization direction: Through Thickness
Magnetic Face: 3/16″ dia.
Max Operating Temp(C/F): 80/176
