SMDN0038 Neodymium Disc Magnet

Product ID: SMDN0038
Material: NdFeB
Shape: Disc
Dimension: 1/4” dia. x 2/10” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.043
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 3.07
Surface Field(Gauss): 5597
Magnetization Direction: Through Thickness
Magnetic Face: 1/4″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

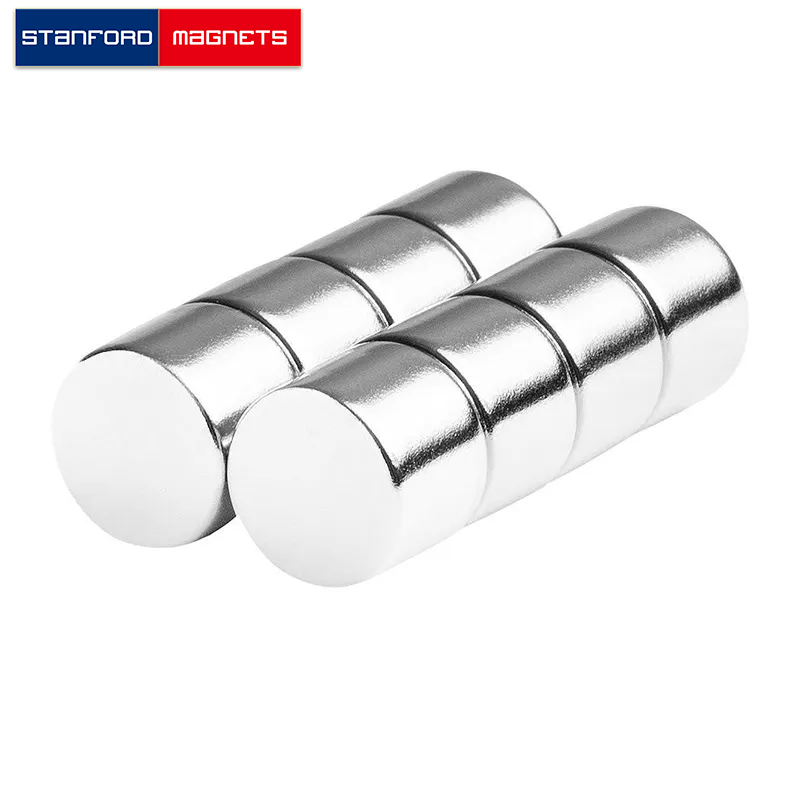

The SMDN0038 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4″ dia. × 2/10″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0026625 lbs. It can pull up to 3.07 lbs steel. And the surface field is up to 5597 gausses.
