SMDN0047 Neodymium DISC Magnet | Stanford Magnets

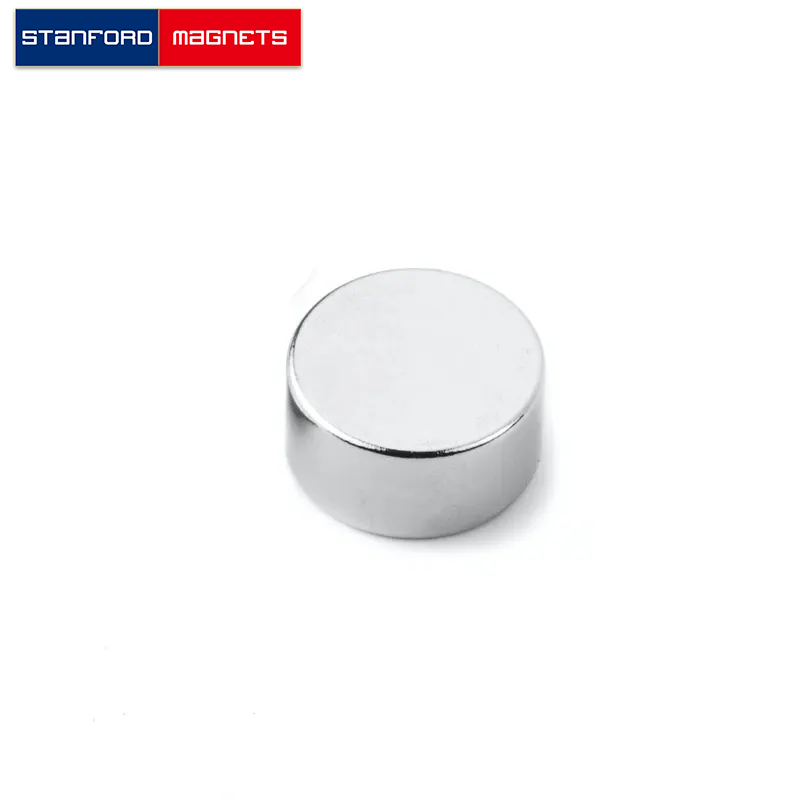

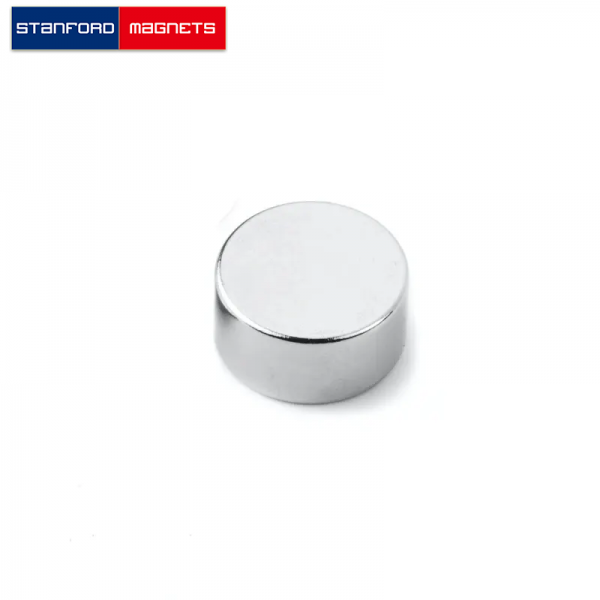

SMDN0047 Neodymium DISC Magnet

The SMDN0047 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/16″ dia. × 3/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0039 lbs. It can pull up to 4.4 lbs steel. And the surface field is up to 5070 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0047
Material: NdFeB
Shape: Disc
Dimension: 5/16” dia. x 3/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.062
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.4
Surface Field(Gauss): 5070
Magnetization direction: Through Thickness
Magnetic Face: 5/16″ dia.
Max Operating Temp(C/F): 80/176
