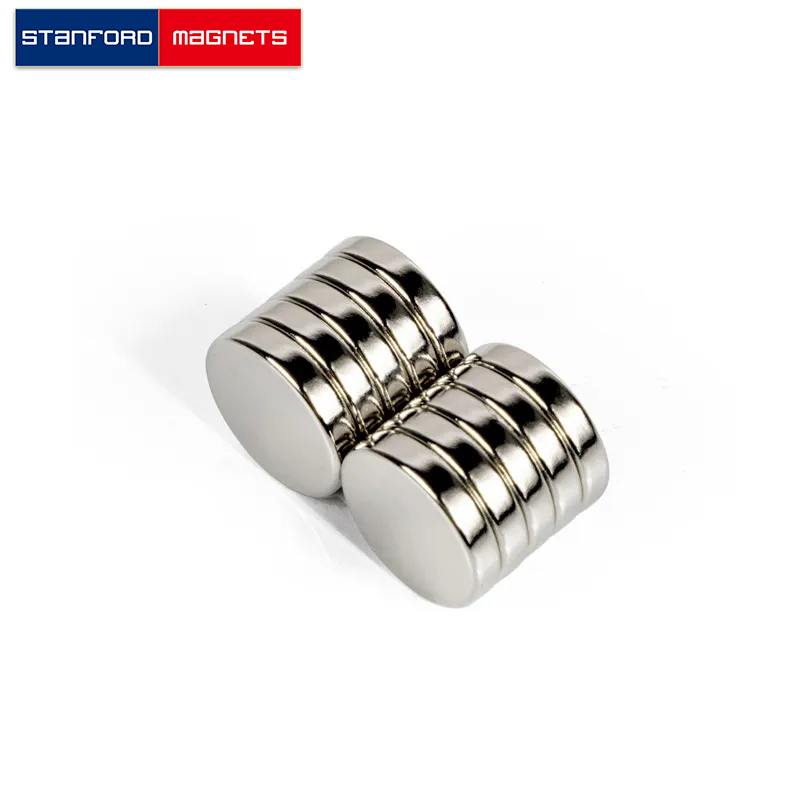

SMDN0057 Neodymium Disc Magnet | Stanford Magnets

SMDN0057 Neodymium Disc Magnet

Product ID: SMDN0057
Material: NdFeB
Shape: Disc
Dimension: 3/8” dia. x 3/32” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.045
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.78
Surface Field(Gauss): 2952
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMDN0057 disc neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ dia. × 3/32″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00280625 lbs. It can pull up to 2.78 lbs steel. And the surface field is up to 2952 gausses.
