SMDN0060 Neodymium DISC Magnet - Stanford Magnets

SMDN0060 Neodymium DISC Magnet

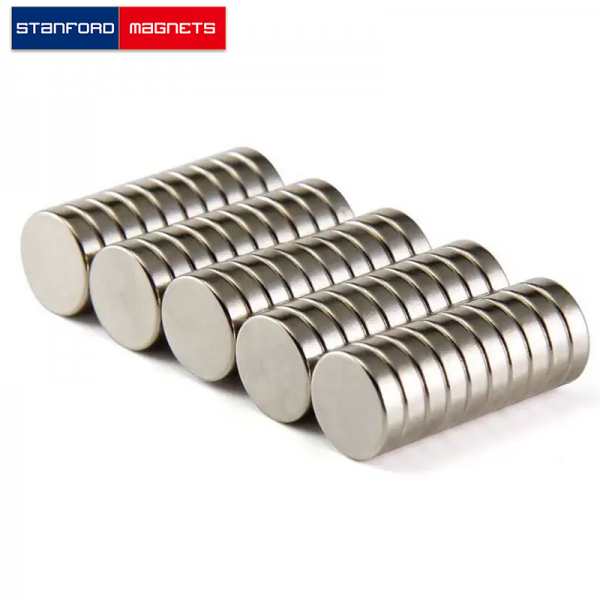

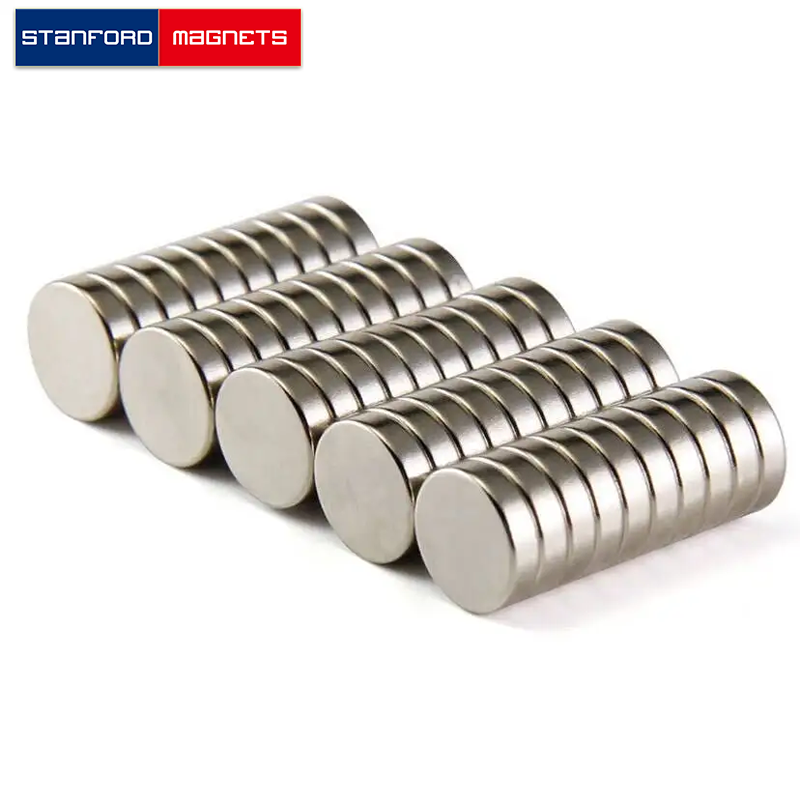

The SMDN0060 DISC neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/8″ dia. × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00374375 lbs. It can pull up to 5.46 lbs steel. And the surface field is up to 4105 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0060
Material: NdFeB
Shape: Disc
Dimension: 3/8” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.06
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.46
Surface Field(Gauss): 4105
Magnetization direction: Through Thickness
Magnetic Face: 3/8″ dia.
Max Operating Temp(C/F): 80/176
