SMDN0069 Neodymium Disc Magnet

Product ID: SMDN0069

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

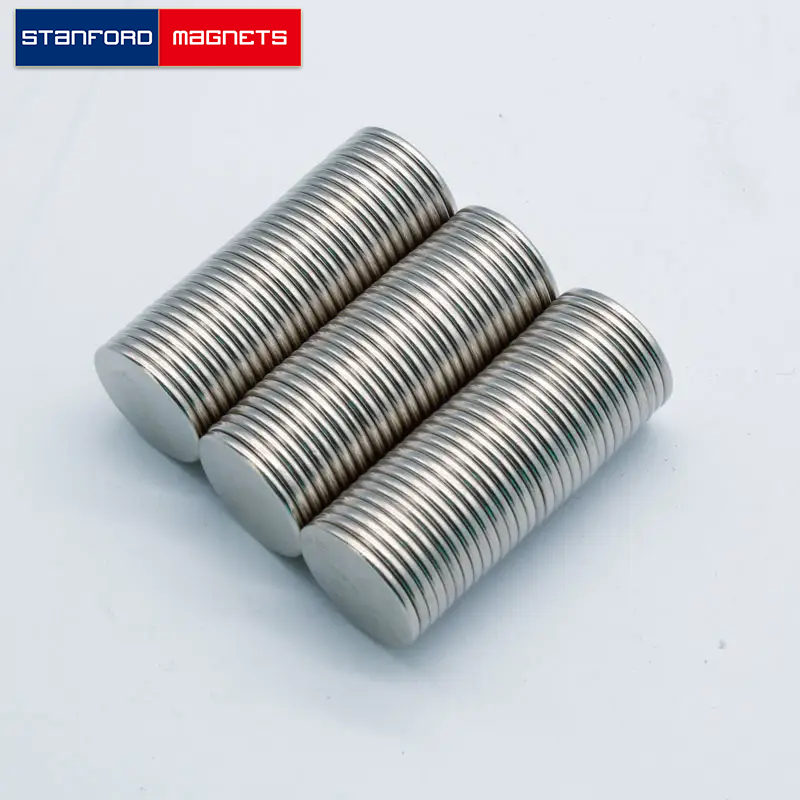

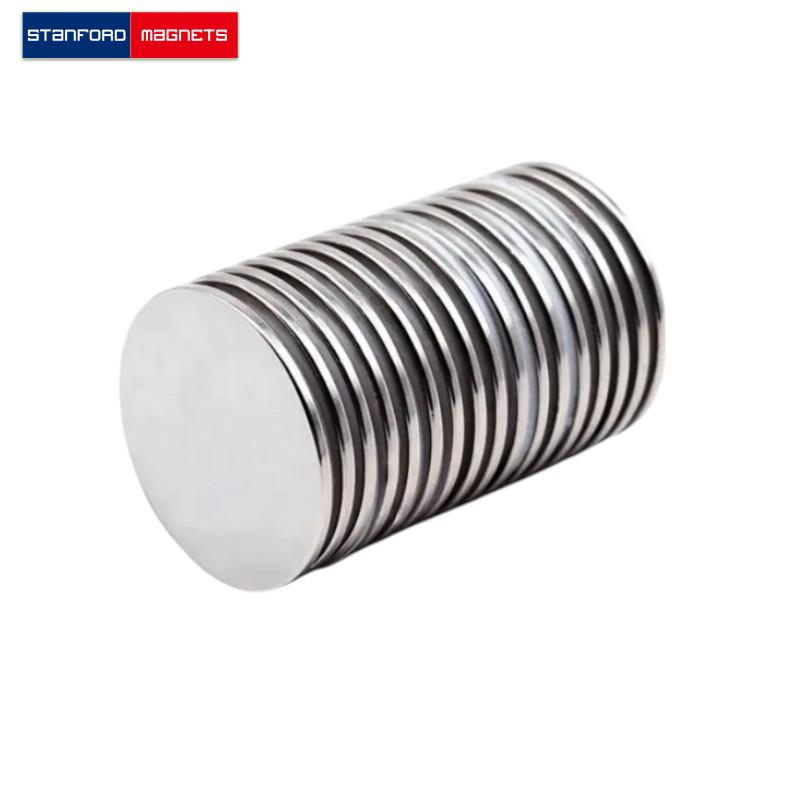

The SMDN0069 disc neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 7/16" dia. × 1/32" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.001275 lbs. It can pull up to 1.24 lbs steel. And the surface field is up to 1047 gauss.

Download a PDF Specification Sheet
