SMDN0085 Neodymium DISC Magnet - Stanford Magnets

SMDN0085 Neodymium DISC Magnet

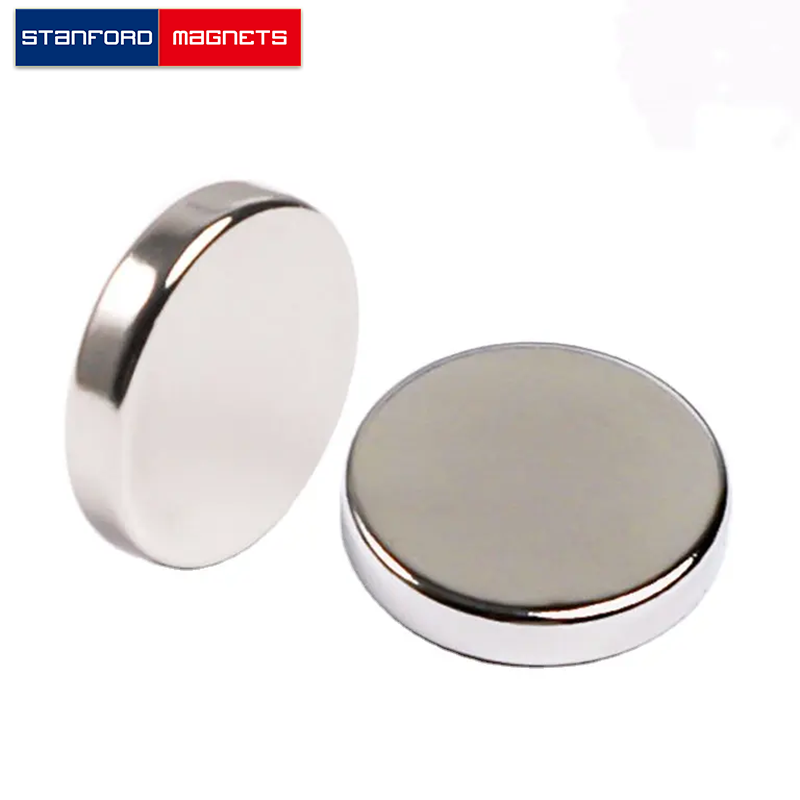

The SMDN0085 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ dia. × 1/16″ thick with adhesive backing, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.003325 lbs. It can pull up to 3.1 lbs steel. And the surface field is up to 1601 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0085
Material: NdFeB
Shape: Disc
Dimension: 1/2” dia. x 1/16” thick with adhesive backing
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.053
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 3.1
Surface Field(Gauss): 1601
Magnetization direction: Through Thickness
Magnetic Face: 1/2″ dia.
Max Operating Temp(C/F): 80/176
