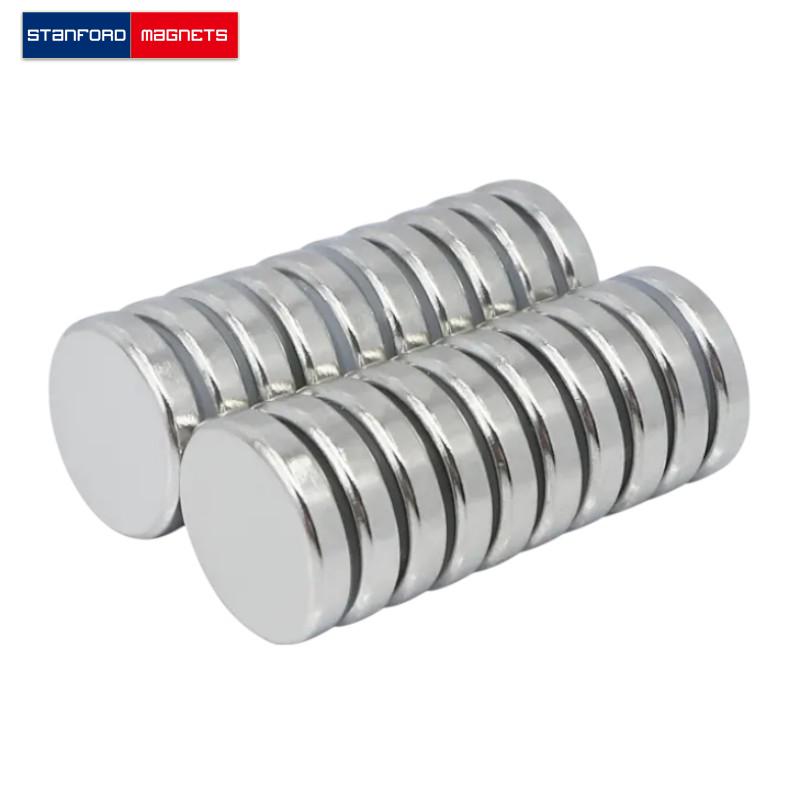

SMDN0087 Neodymium DISC Magnet

The SMDN0087 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ dia. × 1/10″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00531875 lbs. It can pull up to 4.62 lbs steel. And the surface field is up to 2451 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0087
Material: NdFeB
Shape: Disc
Dimension: 1/2” dia. x 1/10” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.085
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.62
Surface Field(Gauss): 2451
Magnetization direction: Through Thickness
Magnetic Face: 1/2″ dia.
Max Operating Temp(C/F): 80/176
