SMDN0090 Neodymium DISC Magnet | Stanford Magnets

SMDN0090 Neodymium DISC Magnet

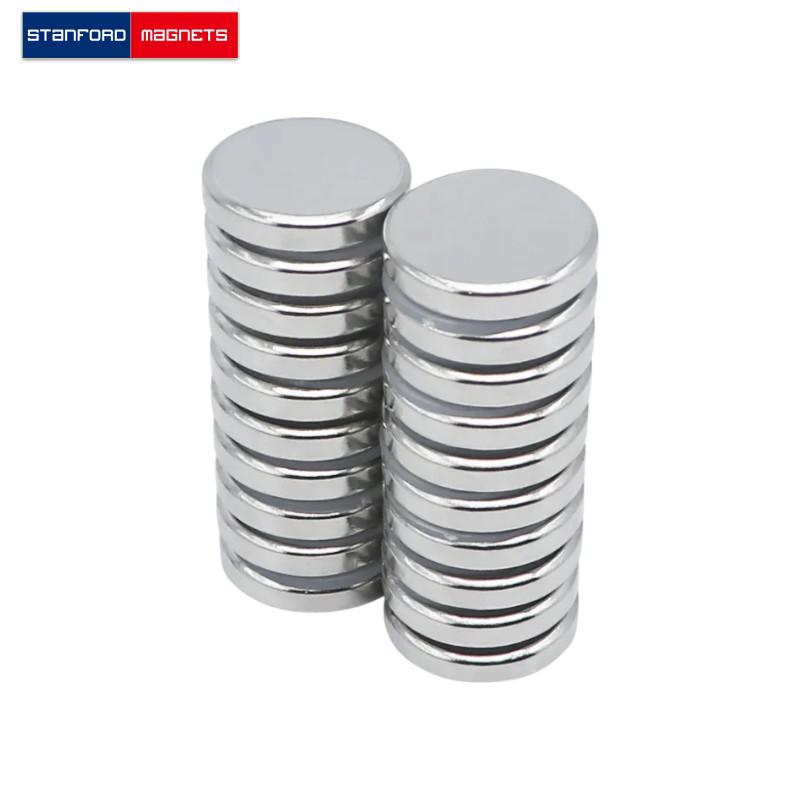

The SMDN0090 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ dia. × 1/8″ thick, magnetized Diametrical, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.006625 lbs. It can pull up to 2.79 lbs steel. And the surface field is up to 7157 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0090
Material: NdFeB
Shape: Disc
Dimension: 1/2” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.11
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.79
Surface Field(Gauss): 7157
Magnetization direction: Diametrical
Max Operating Temp(C/F): 80/176
