SMDN0091 Neodymium Disc Magnet | Stanford Magnets

SMDN0091 Neodymium Disc Magnet

Product ID: SMDN0091
Material: NdFeB
Shape: Disc
Dimension: 1/2” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.11
Grade: N42
Coating: Rubber Coated Magnets
Pull Force(Lbs): 6.44
Surface Field(Gauss): 2952
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

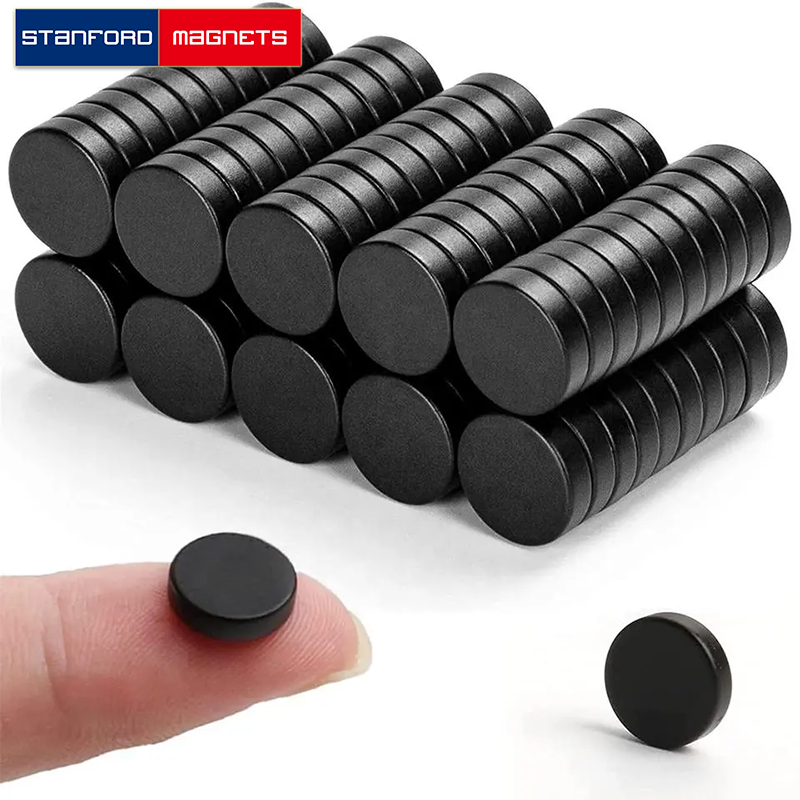

The SMDN0091 disc neodymium magnet is made from high-performance N42 NdFeB, with Black rubber coating. The dimension of this item is 1/2″ dia. × 1/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.006625 lbs. It can pull up to 6.44 lbs steel. And the surface field is up to 2952 gauss.
