SMDN0115 Neodymium DISC Magnet

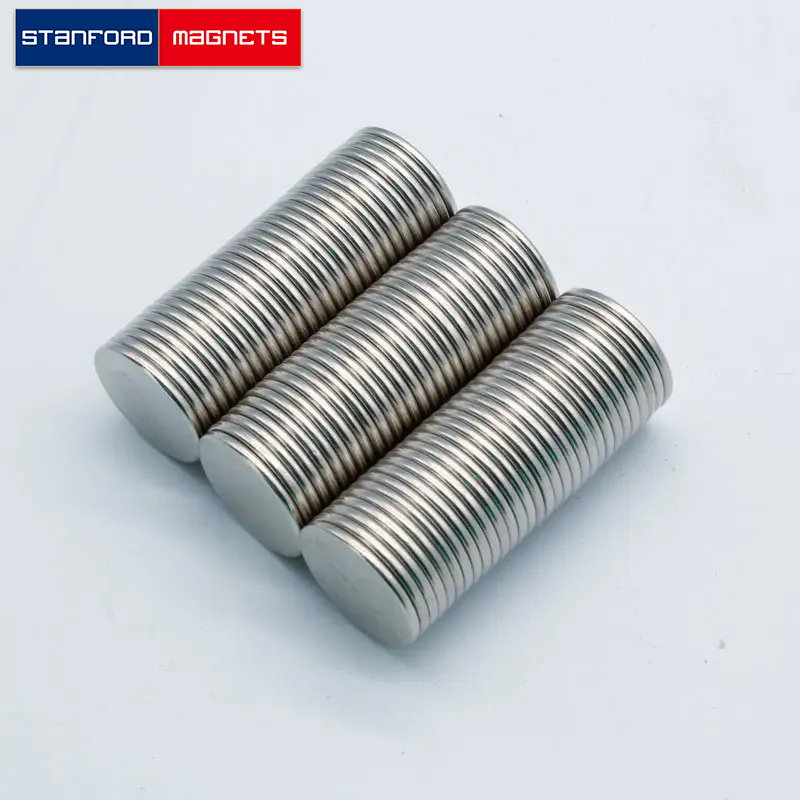

The SMDN0115 DISC neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 5/8″ dia. × 1/32″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0026 lbs. It can pull up to 1.82 lbs steel. And the surface field is up to 736 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0115
Material: NdFeB
Shape: Disc
Dimension: 5/8” dia. x 1/32” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.042
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.82
Surface Field(Gauss): 736
Magnetization direction: Through Thickness
Magnetic Face: 5/8″ dia.
Max Operating Temp(C/F): 80/176
