SMDN0123 Neodymium DISC Magnet

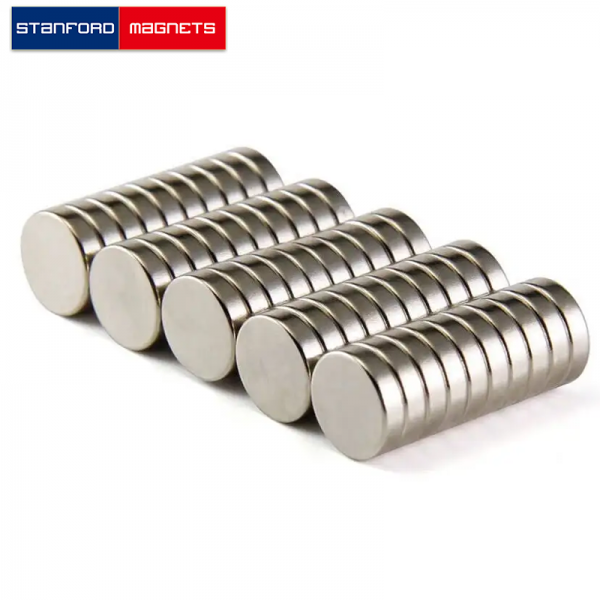

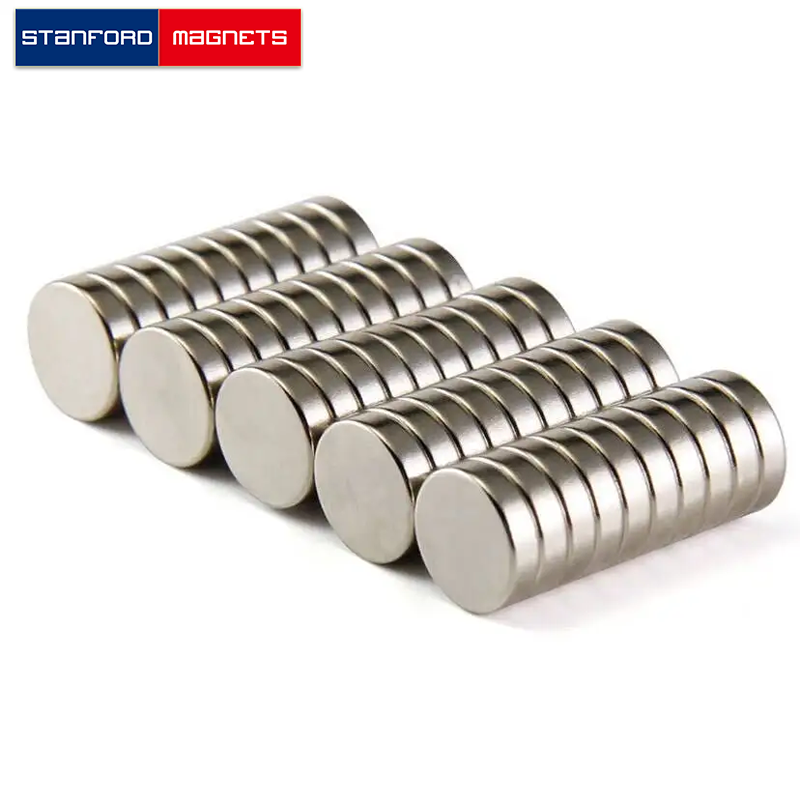

The SMDN0123 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8″ dia. × 2/10″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.016625 lbs. It can pull up to 13.25 lbs steel. And the surface field is up to 3558 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0123
Material: NdFeB
Shape: Disc
Dimension: 5/8” dia. x 2/10” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.27
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 13.25
Surface Field(Gauss): 3558
Magnetization direction: Through Thickness
Magnetic Face: 5/8″ dia.
Max Operating Temp(C/F): 80/176
