SMDN0134 Neodymium Disc Magnet | Stanford Magnets

SMDN0134 Neodymium Disc Magnet

Product ID: SMDN0134
Material: NdFeB
Shape: Disc
Dimension: 11/16” dia. x 1/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.4
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 17.07
Surface Field(Gauss): 3880
Magnetization Direction: Through Thickness
Magnetic Face: 11/16″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

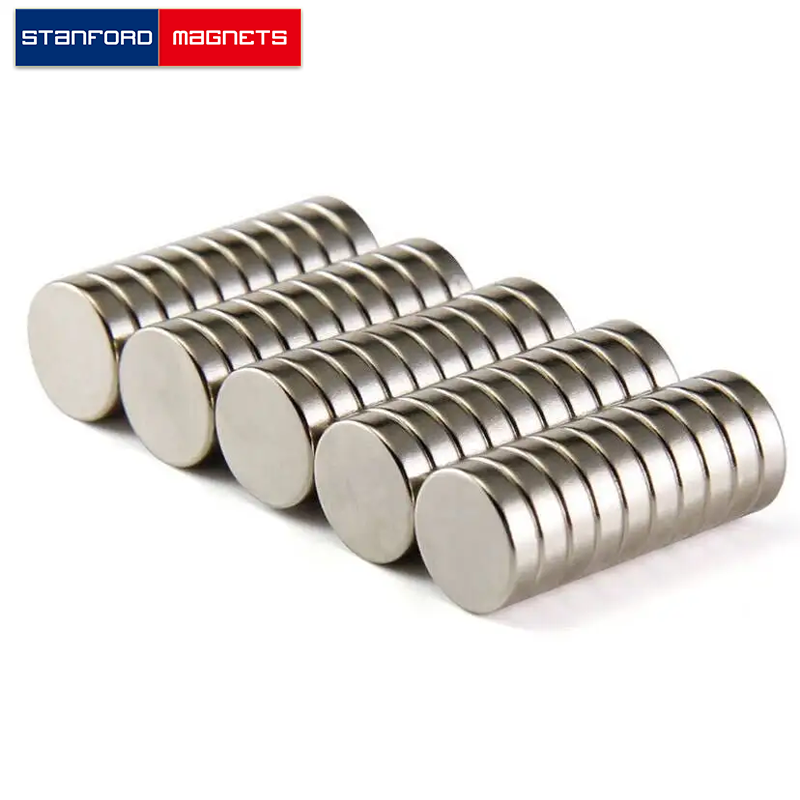

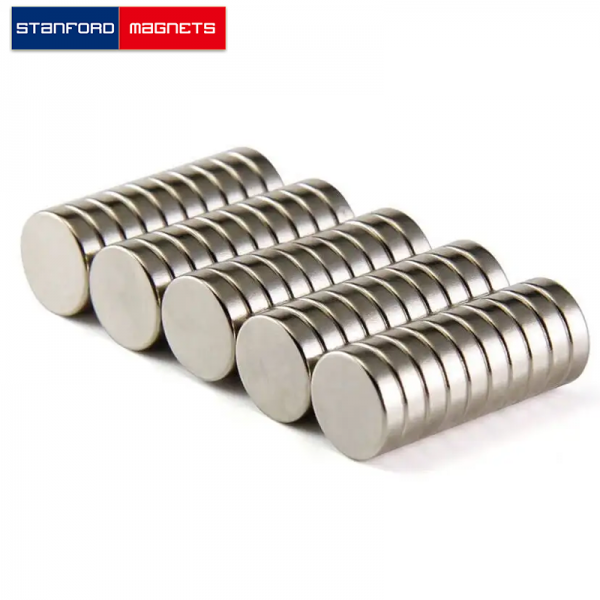

The SMDN0134 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 11/16″ dia. × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.025125 lbs. It can pull up to 17.07 lbs steel. And the surface field is up to 3880 gausses.
