SMDN0138 Neodymium DISC Magnet | Stanford Magnets

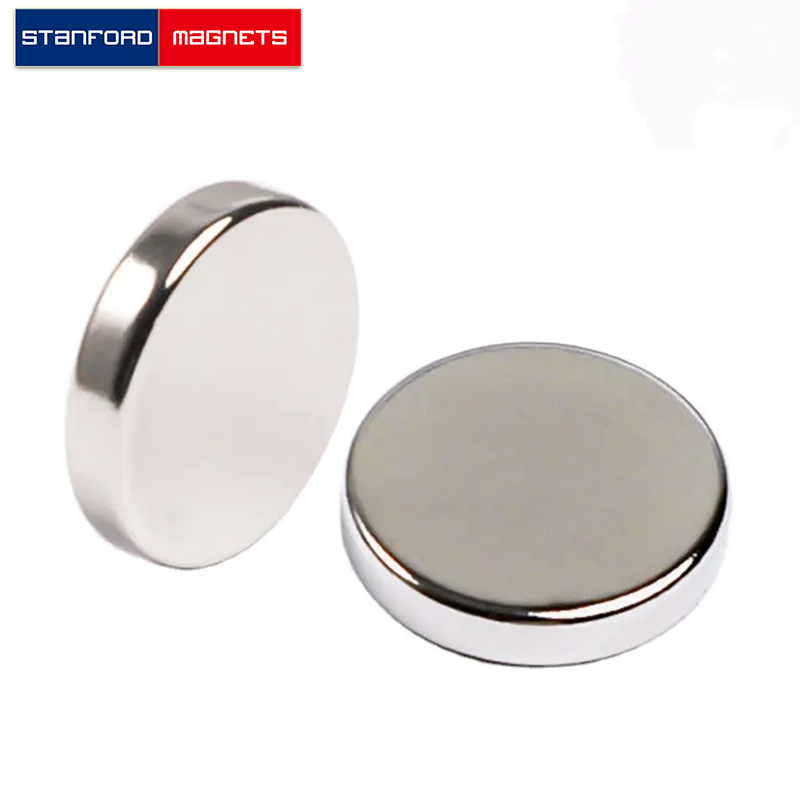

SMDN0138 Neodymium DISC Magnet

The SMDN0138 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ dia. × 1/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0075 lbs. It can pull up to 4.95 lbs steel. And the surface field is up to 1085 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0138
Material: NdFeB
Shape: Disc
Dimension: 3/4” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.12
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.95
Surface Field(Gauss): 1085
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ dia.
Max Operating Temp(C/F): 80/176
