SMDN0149 Neodymium DISC Magnet

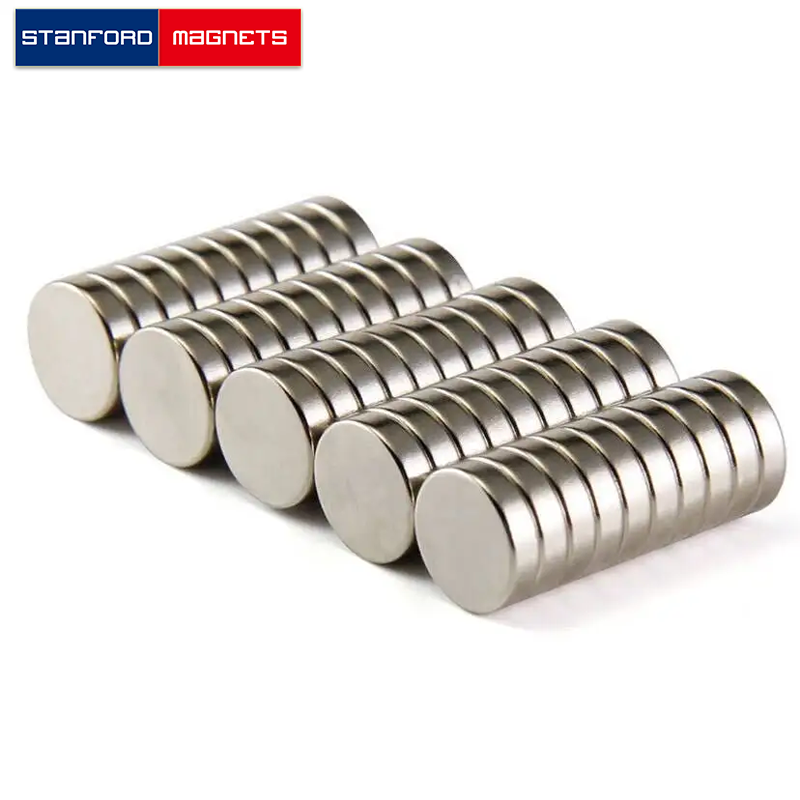

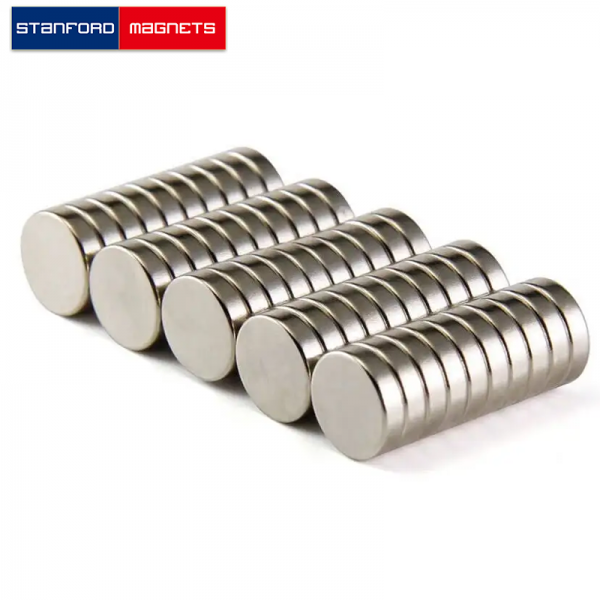

The SMDN0149 DISC neodymium magnet is made from high performance N42SH NdFeB, with Nickel coating. The dimension of this item is 3/4″ dia. × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0299375 lbs. It can pull up to 18.82 lbs steel. And the surface field is up to 3661 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0149
Material: NdFeB
Shape: Disc
Dimension: 3/4” dia. x 1/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.48
Grade: 42SH
Coating: Nickel Coated Magnets
Pull Force(Lbs): 18.82
Surface Field(Gauss): 3661
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ dia.
Max Operating Temp(C/F): 150/302
