SMDN0158 Neodymium DISC Magnet | Stanford Magnets

SMDN0158 Neodymium DISC Magnet

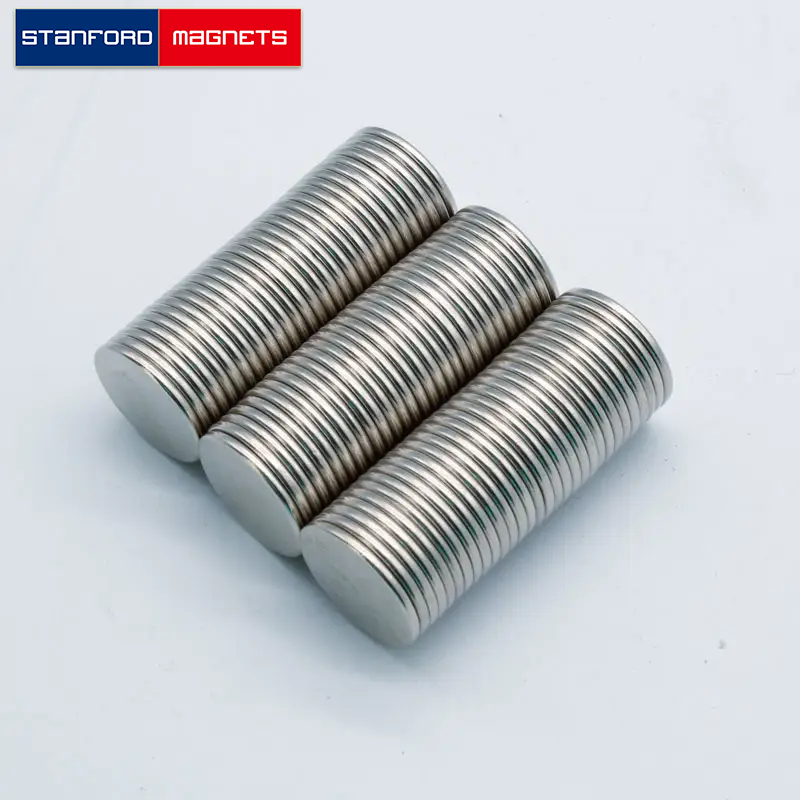

The SMDN0158 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 13/16″ dia. × 1/32″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00439375 lbs. It can pull up to 1.93 lbs steel. And the surface field is up to 506 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0158
Material: NdFeB
Shape: Disc
Dimension: 13/16” dia. x 1/32” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.07
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.93
Surface Field(Gauss): 506
Magnetization direction: Through Thickness
Magnetic Face: 13/16″ dia.
Max Operating Temp(C/F): 80/176
