SMDN0167 Neodymium Disc Magnet

Product ID: SMDN0167
Material: NdFeB
Shape: Disc
Dimension: 7/8” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.16
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.5
Surface Field(Gauss): 933
Magnetization Direction: Through Thickness
Magnetic Face: 7/8″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

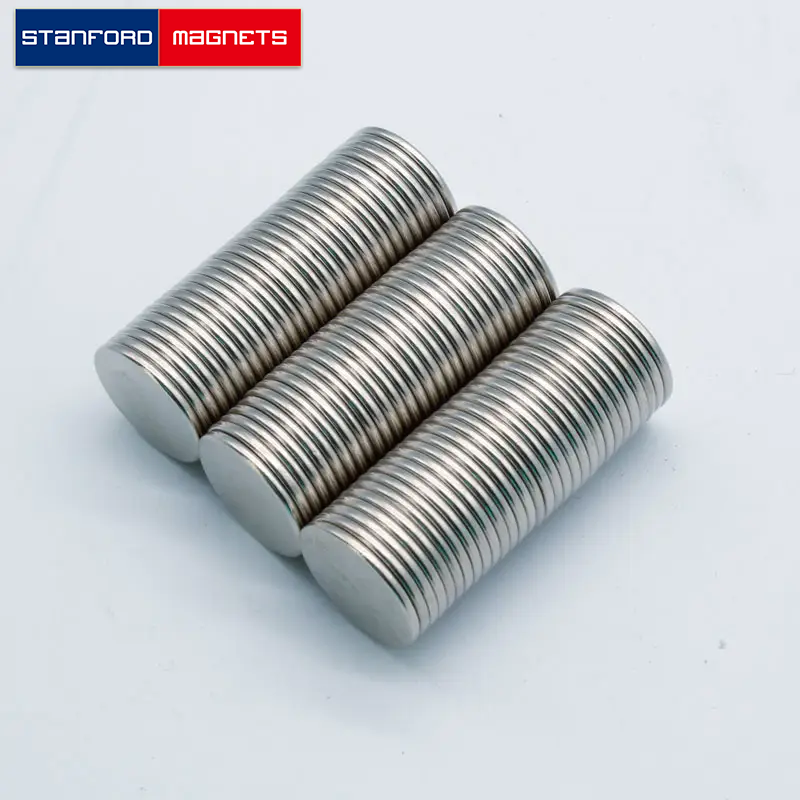

The SMDN0167 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 7/8″ dia. × 1/16″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0101875 lbs. It can pull up to 5.5 lbs steel. And the surface field is up to 933 gausses.
