SMDN0168 Neodymium Disc Magnet

Product ID: SMDN0168

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

TECHNICAL DATA SHEET

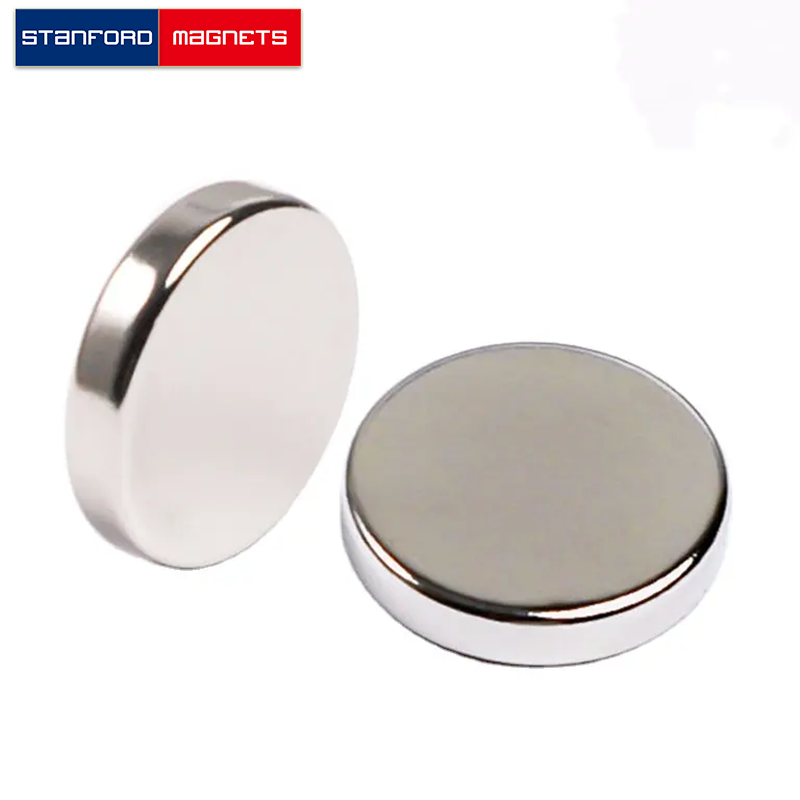

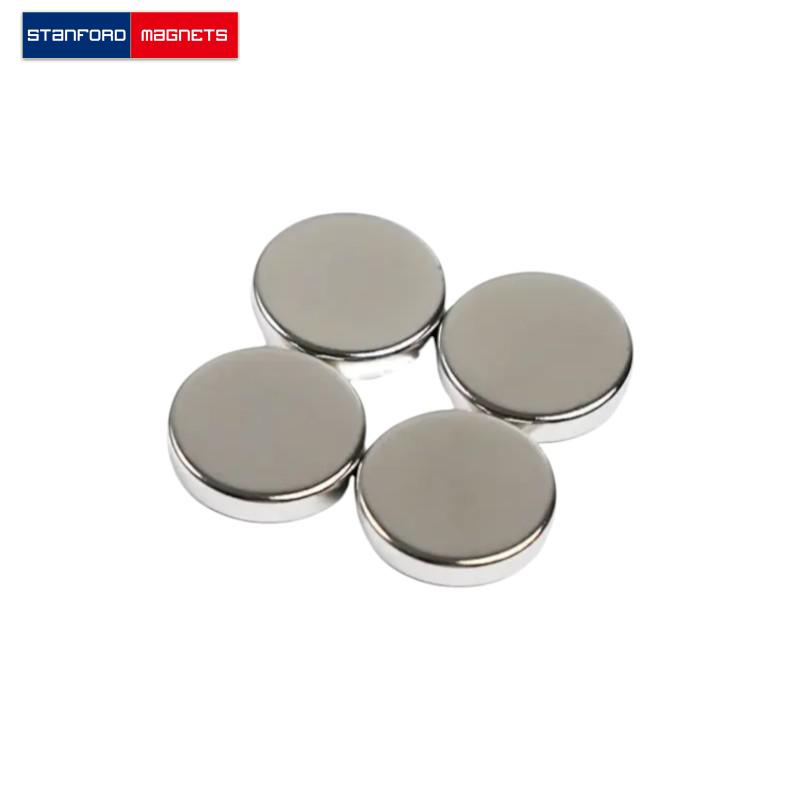

The SMDN0168 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 7/8" dia. × 3/32" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.01525 lbs. It can pull up to 7.7 lbs steel. And the surface field is up to 1383 gausses.

Download a PDF Specification Sheet
