SMDN0177 Neodymium Disc Magnet

Product ID: SMDN0177
Material: NdFeB
Shape: Disc
Dimension: 7/8” dia. x 3/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.96
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 43
Surface Field(Gauss): 5701
Magnetization Direction: Through Thickness
Magnetic Face: 7/8″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

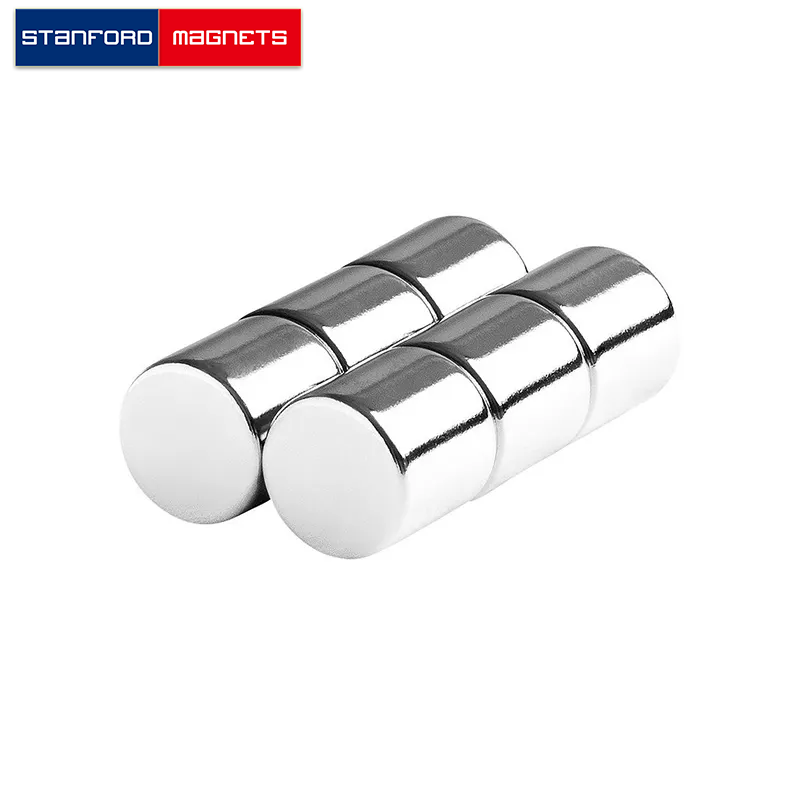

The SMDN0177 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 7/8″ dia. × 3/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.1225 lbs. It can pull up to 43 lbs steel. And the surface field is up to 5701 gausses.
