SMDN0179 Neodymium Disc Magnet

Product ID: SMDN0179
Material: NdFeB
Shape: Disc
Dimension: 15/16” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.19
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 6.2
Surface Field(Gauss): 879
Magnetization Direction: Through Thickness
Magnetic Face: 15/16″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

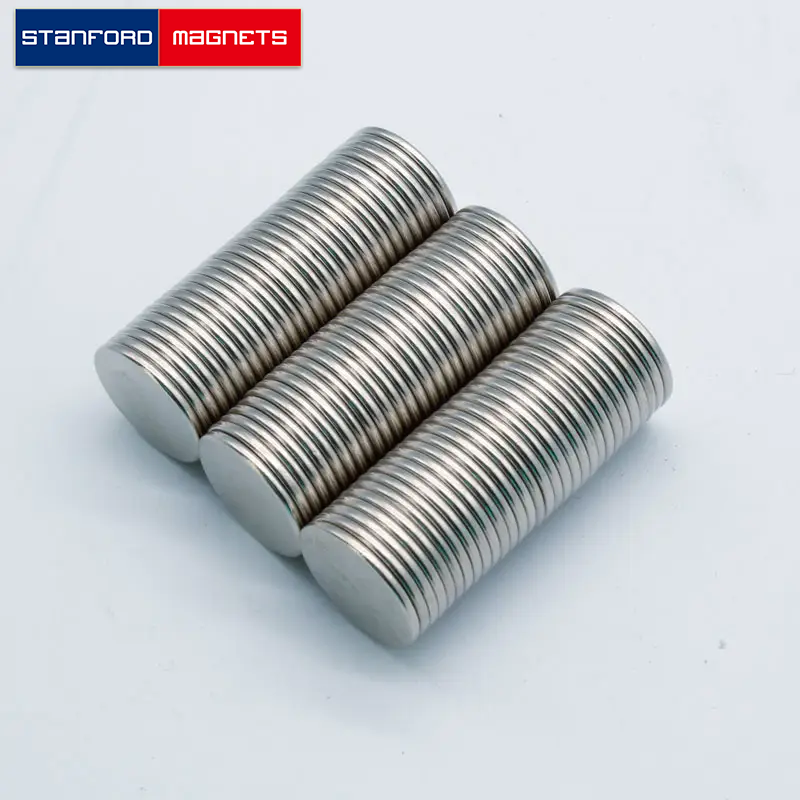

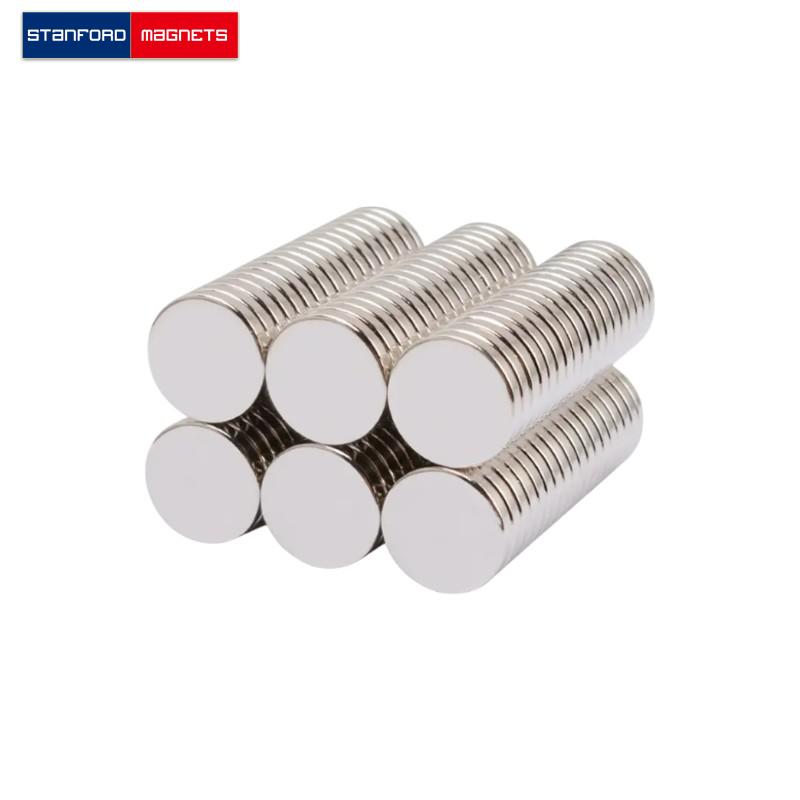

The SMDN0179 disc neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 15/16″ dia. × 1/16″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0116875 lbs. It can pull up to 6.2 lbs steel. And the surface field is up to 879 gausses.
