SMDN0191 Neodymium Disc Magnet | Stanford Magnets

SMDN0191 Neodymium Disc Magnet

Product ID: SMDN0191
Material: NdFeB
Shape: Disc
Dimension: 1” dia. x 1/10” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.34
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 10.4
Surface Field(Gauss): 1294
Magnetization Direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

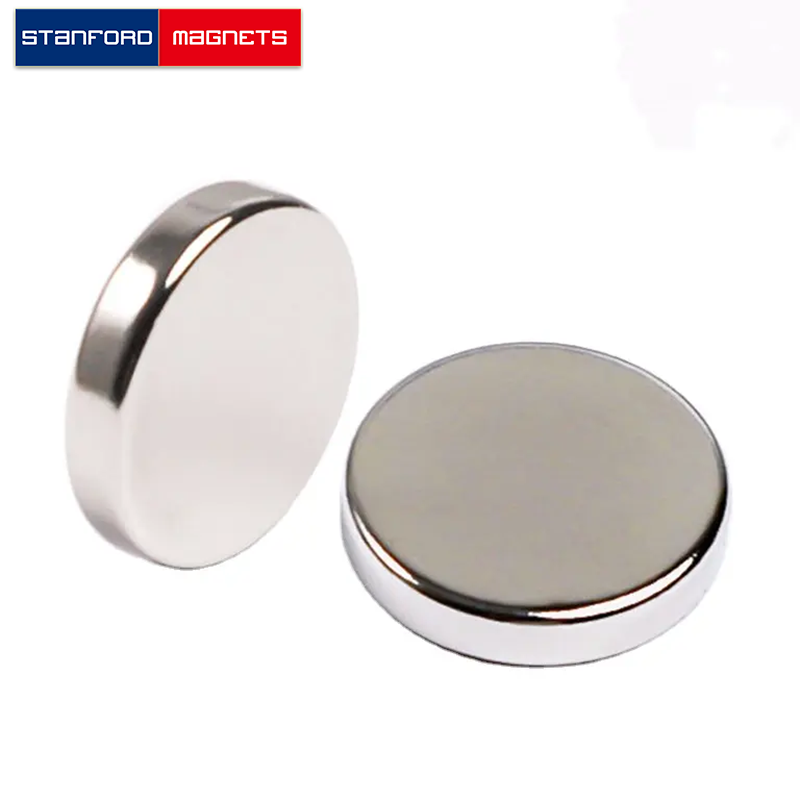

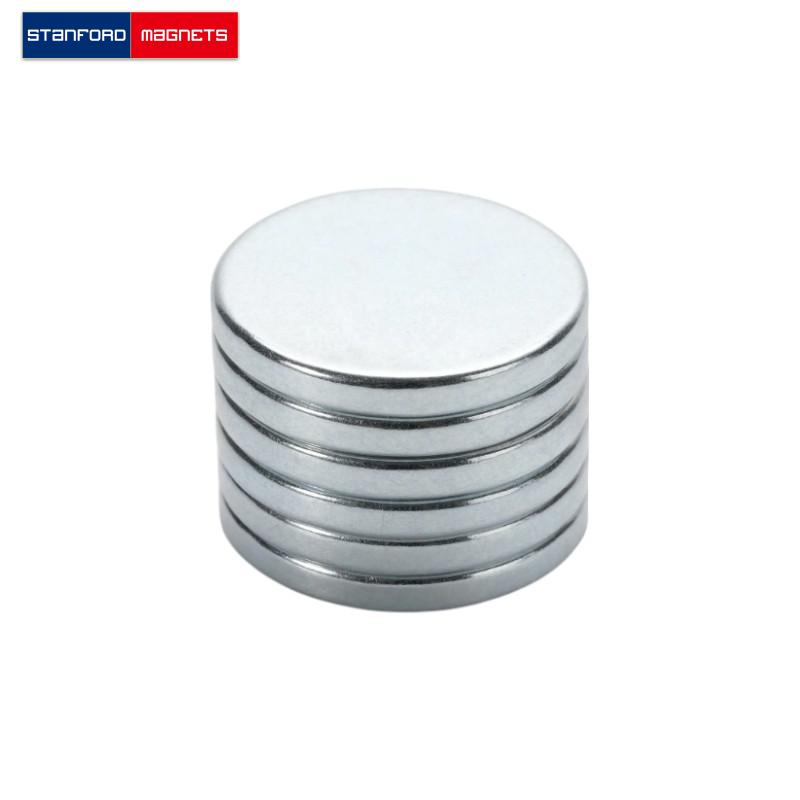

The SMDN0191 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 1/10″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0213125 lbs. It can pull up to 10.4 lbs steel. And the surface field is up to 1294 gausses.
