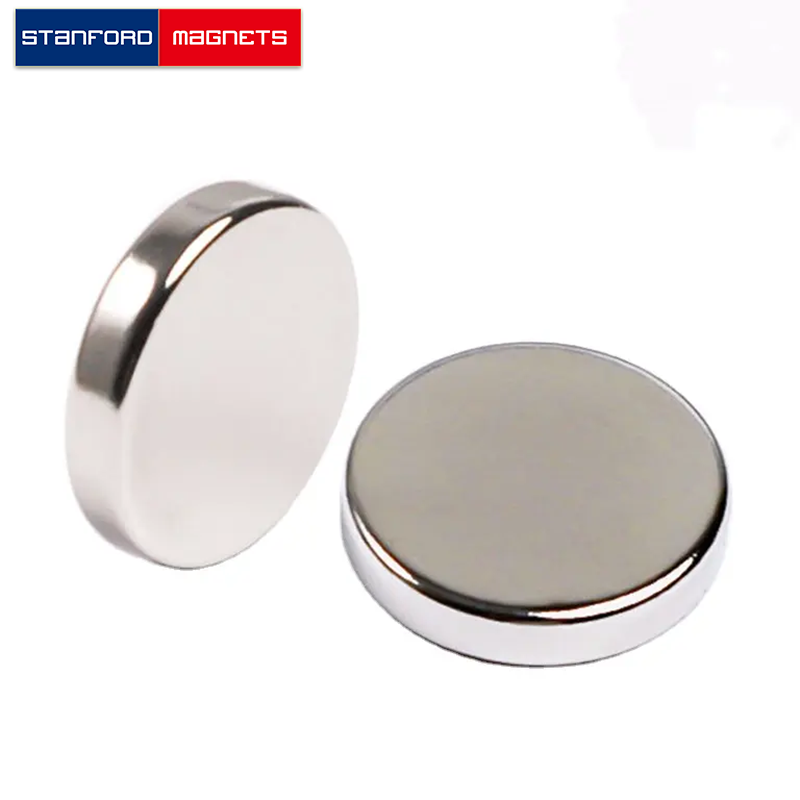

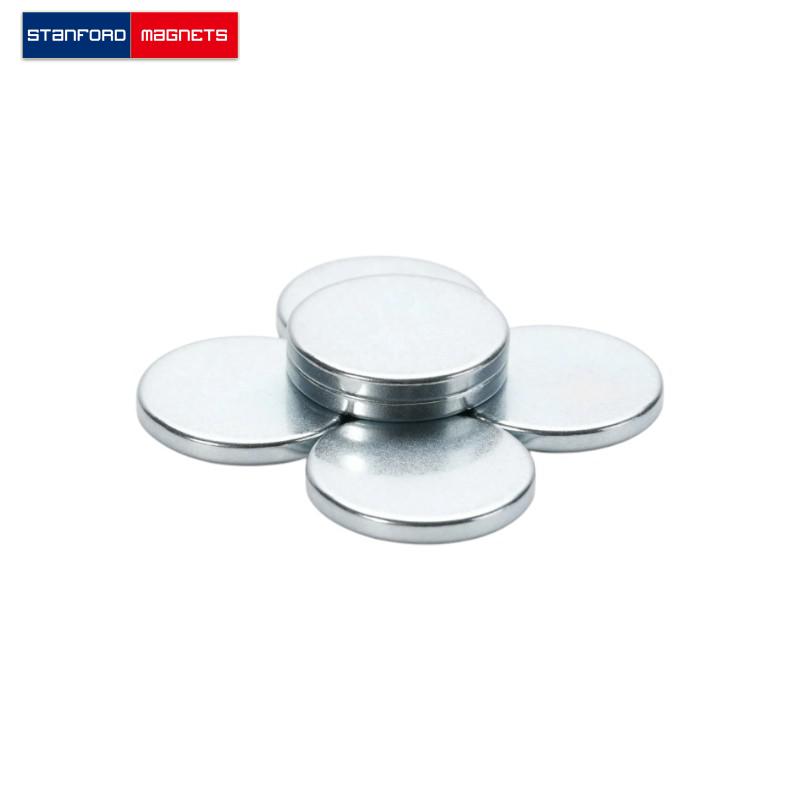

SMDN0193 Neodymium DISC Magnet

The SMDN0193 DISC neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.026625 lbs. It can pull up to 15.6 lbs steel. And the surface field is up to 1803 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0193
Material: NdFeB
Shape: Disc
Dimension: 1” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.43
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 15.6
Surface Field(Gauss): 1803
Magnetization direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176
