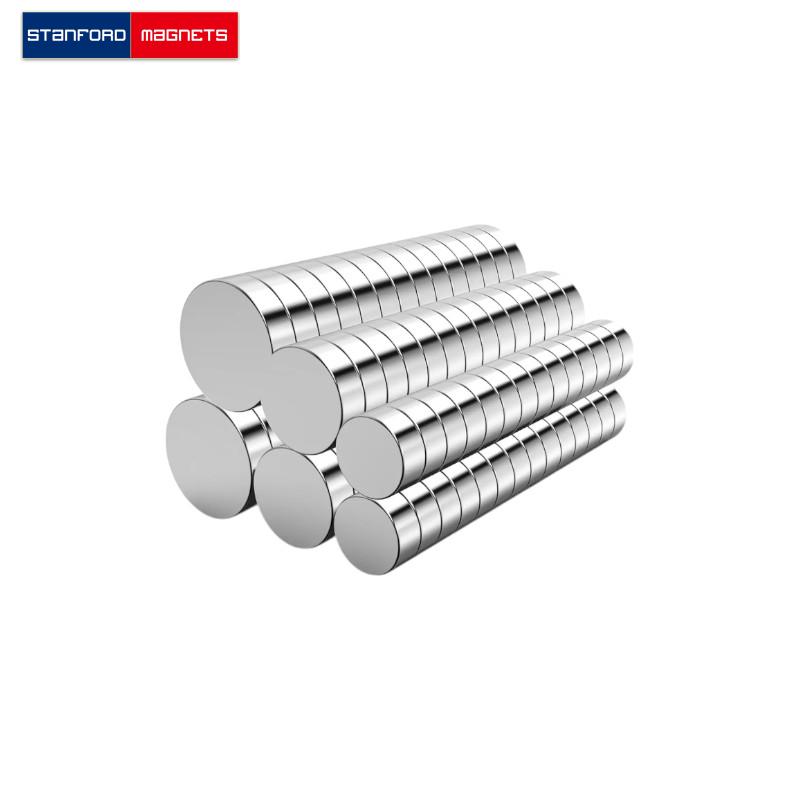

SMDN0195 Neodymium DISC Magnet

The SMDN0195 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 3/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0399375 lbs. It can pull up to 22.45 lbs steel. And the surface field is up to 2317 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0195
Material: NdFeB
Shape: Disc
Dimension: 1” dia. x 3/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.64
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 22.45
Surface Field(Gauss): 2317
Magnetization direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176
