SMDN0197 Neodymium DISC Magnet

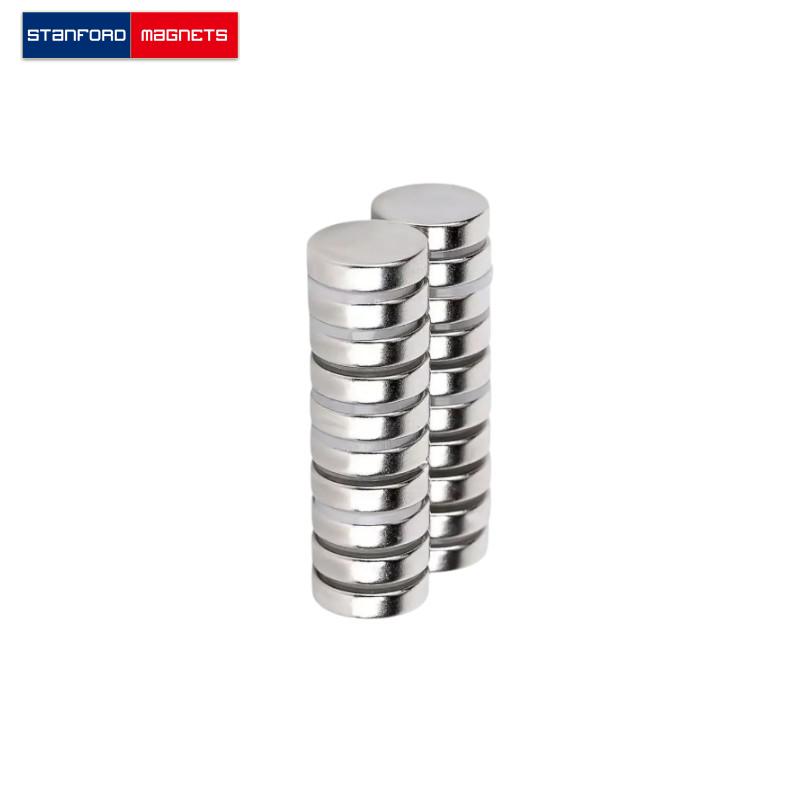

The SMDN0197 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0531875 lbs. It can pull up to 27.2 lbs steel. And the surface field is up to 2952 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0197
Material: NdFeB
Shape: Disc
Dimension: 1” dia. x 1/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.85
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 27.2
Surface Field(Gauss): 2952
Magnetization direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176
