SMDN0199 Neodymium Disc Magnet

Product ID: SMDN0199

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

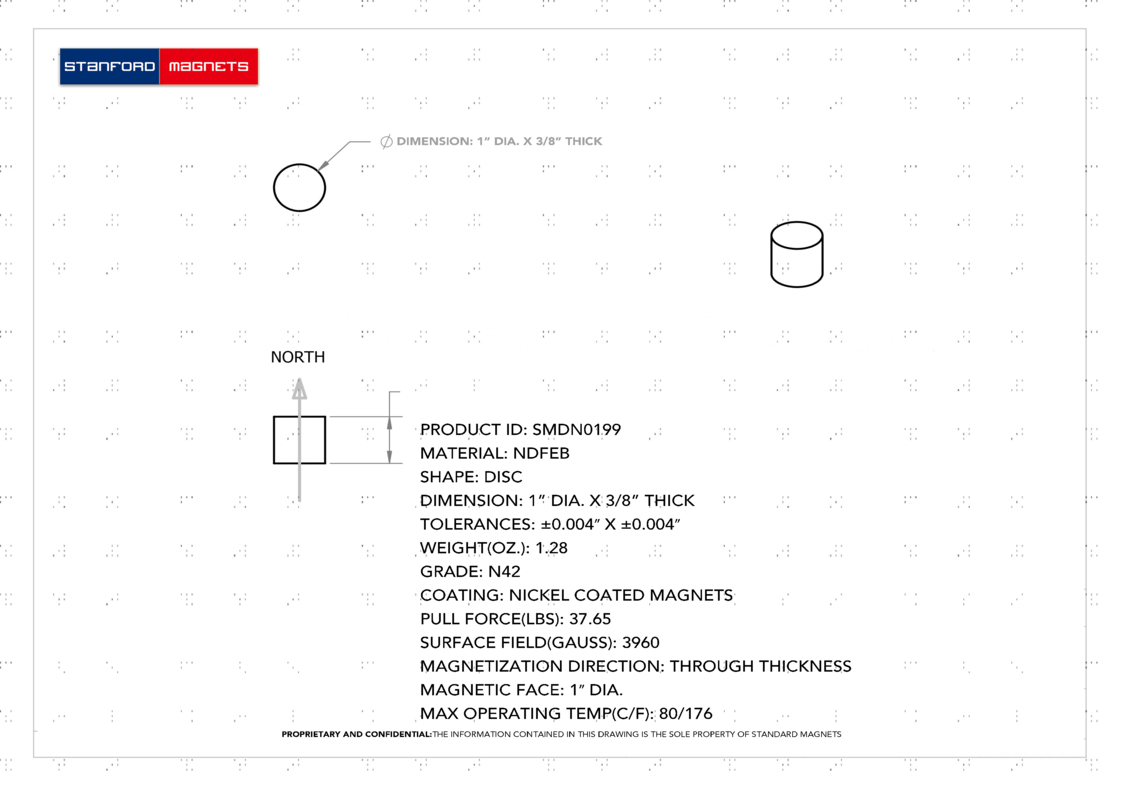

TECHNICAL DATA SHEET

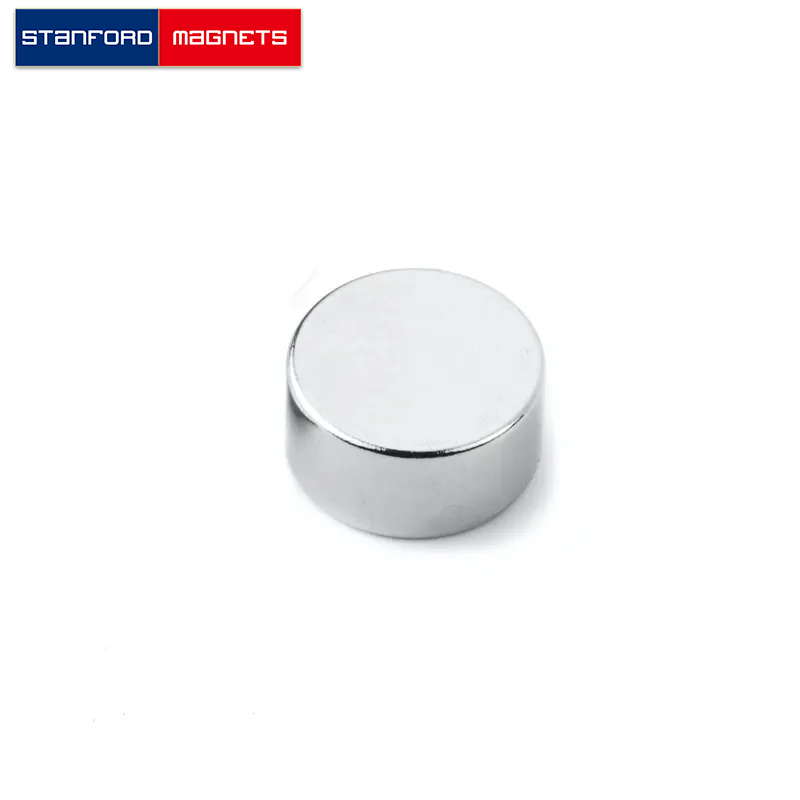

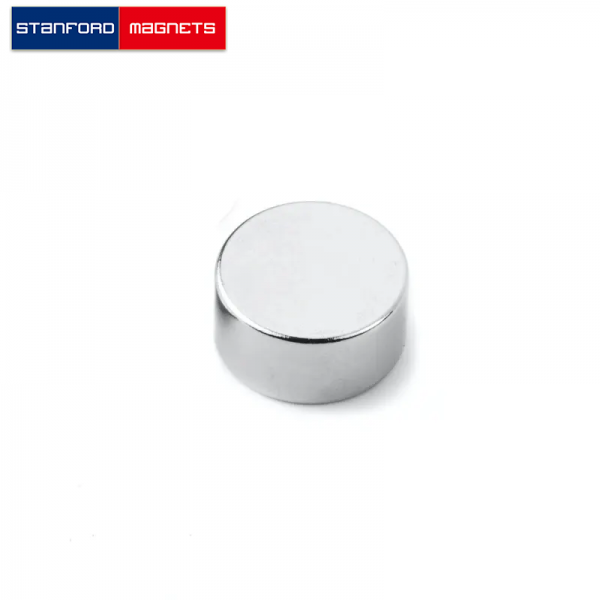

The SMDN0199 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1" dia. × 3/8" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.08 lbs. It can pull up to 37.65 lbs steel. And the surface field is up to 3960 gausses.
Download a PDF Specification Sheet
