SMDN0200 Neodymium DISC Magnet | Stanford Magnets

SMDN0200 Neodymium DISC Magnet

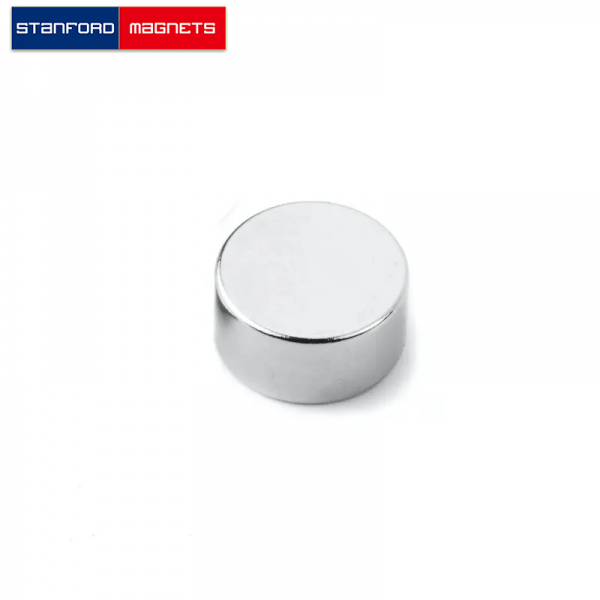

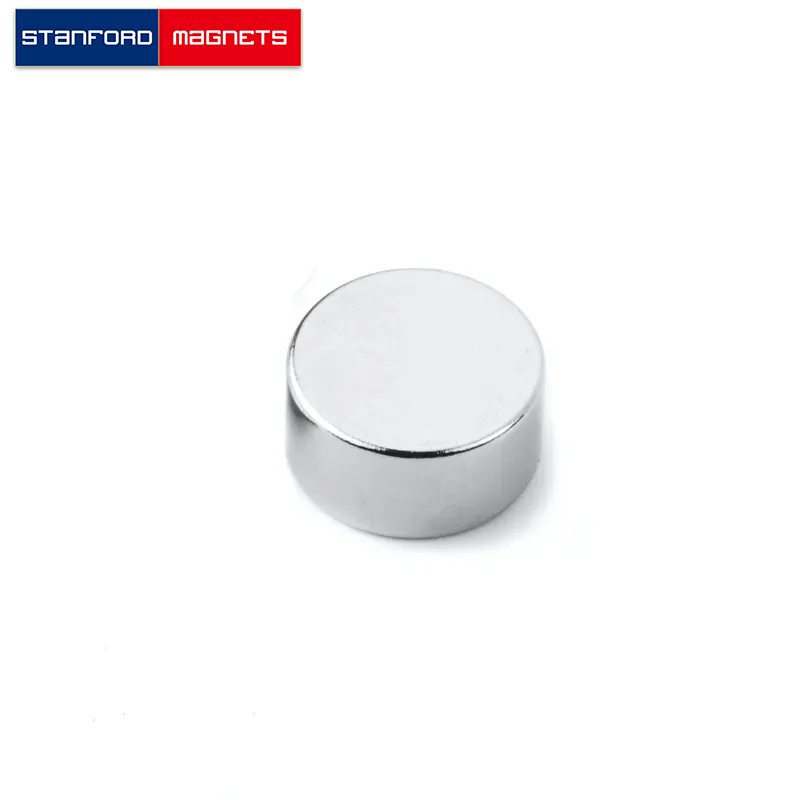

The SMDN0200 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 3/8″ thick with step IN, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.085 lbs. It can pull up to 34.71 lbs steel. And the surface field is up to 3923 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0200
Material: NdFeB
Shape: Disc
Dimension: 1” dia. x 3/8” thick with step IN
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.36
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 34.71
Surface Field(Gauss): 3923
Magnetization direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176
