SMDN0213 Neodymium Disc Magnet | Stanford Magnets

SMDN0213 Neodymium Disc Magnet

Product ID: SMDN0213
Material: NdFeB
Shape: Disc
Dimension: 1 1/8” dia. x 1/2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 2.16
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 54.24
Surface Field(Gauss): 4385
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/8″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

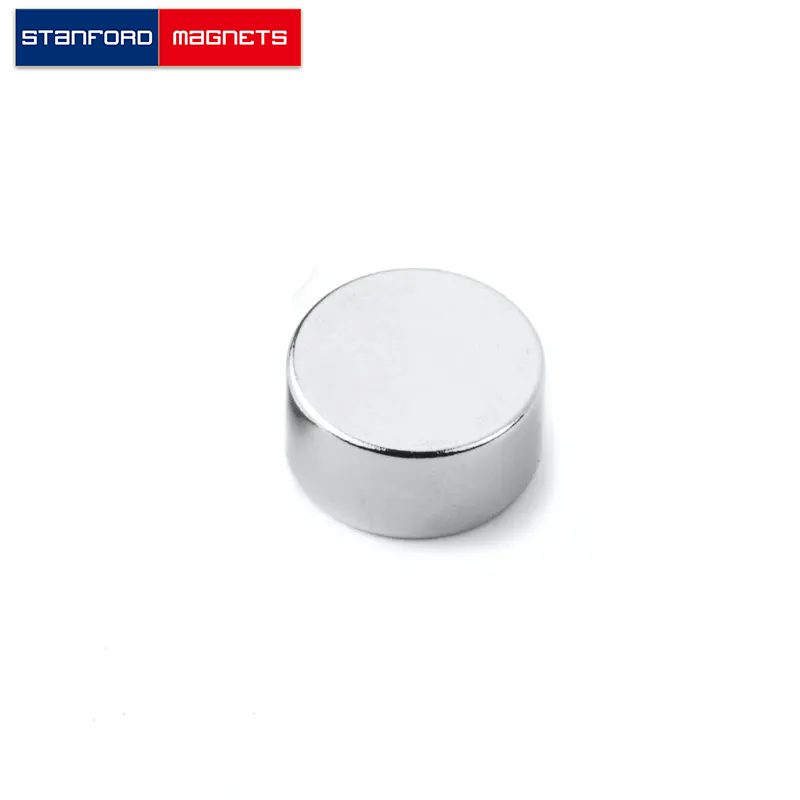

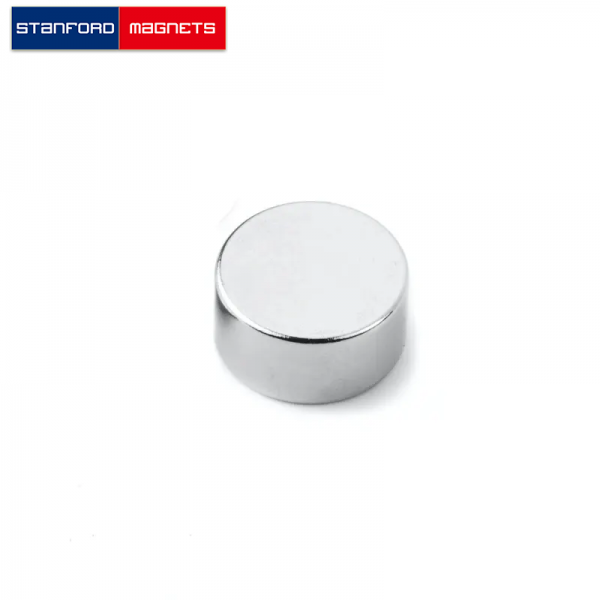

The SMDN0213 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 1/8″ dia. × 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.135 lbs. It can pull up to 54.24 lbs steel. And the surface field is up to 4385 gausses.
