SMDN0214 Neodymium DISC Magnet

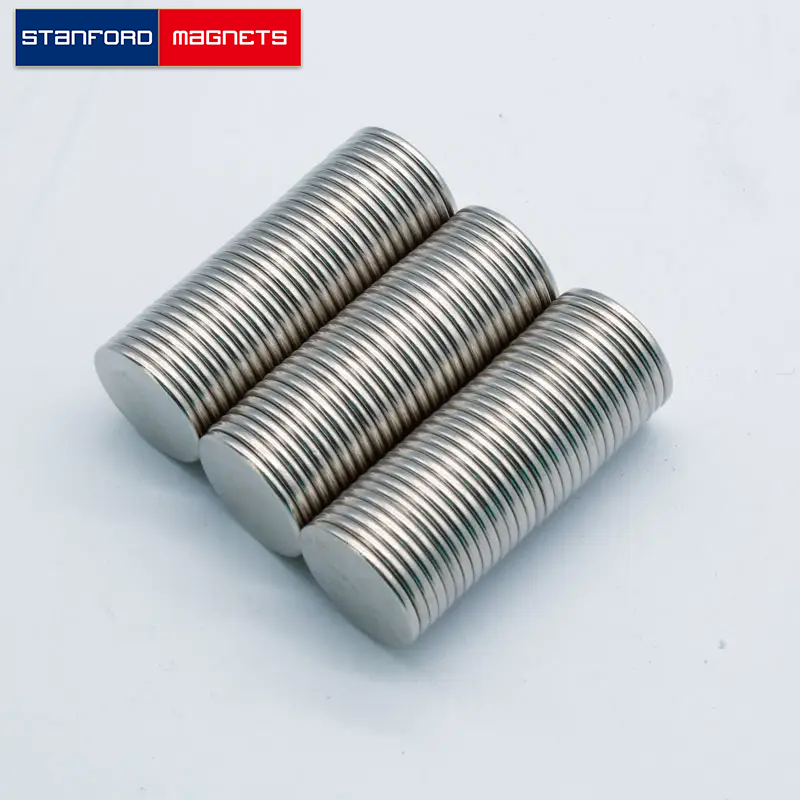

The SMDN0214 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 1/4″ dia. × 1/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.02075 lbs. It can pull up to 7.26 lbs steel. And the surface field is up to 662 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMDN0214
Material: NdFeB
Shape: Disc
Dimension: 1 1/4” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.33
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 7.26
Surface Field(Gauss): 662
Magnetization direction: Through Thickness
Magnetic Face: 1 1/4″ dia.
Max Operating Temp(C/F): 80/176
