SMDN0224 Neodymium Disc Magnet

Product ID: SMDN0224
Material: NdFeB
Shape: Disc
Dimension: 1 1/2” dia. x 1/2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 3.83
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 89.33
Surface Field(Gauss): 4105
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/2″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

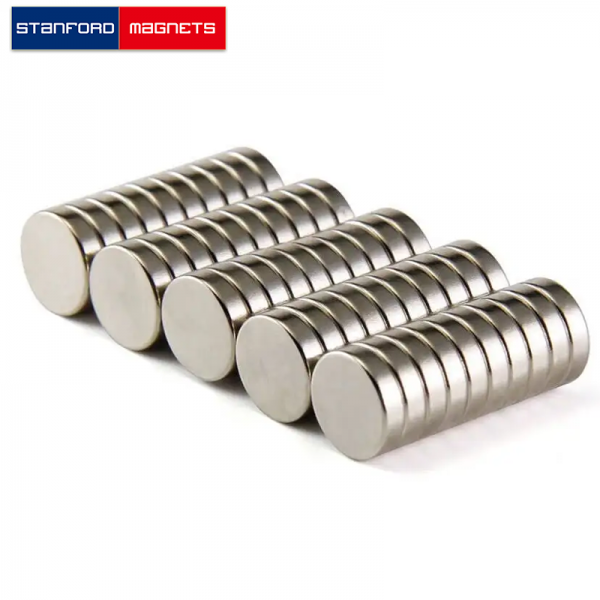

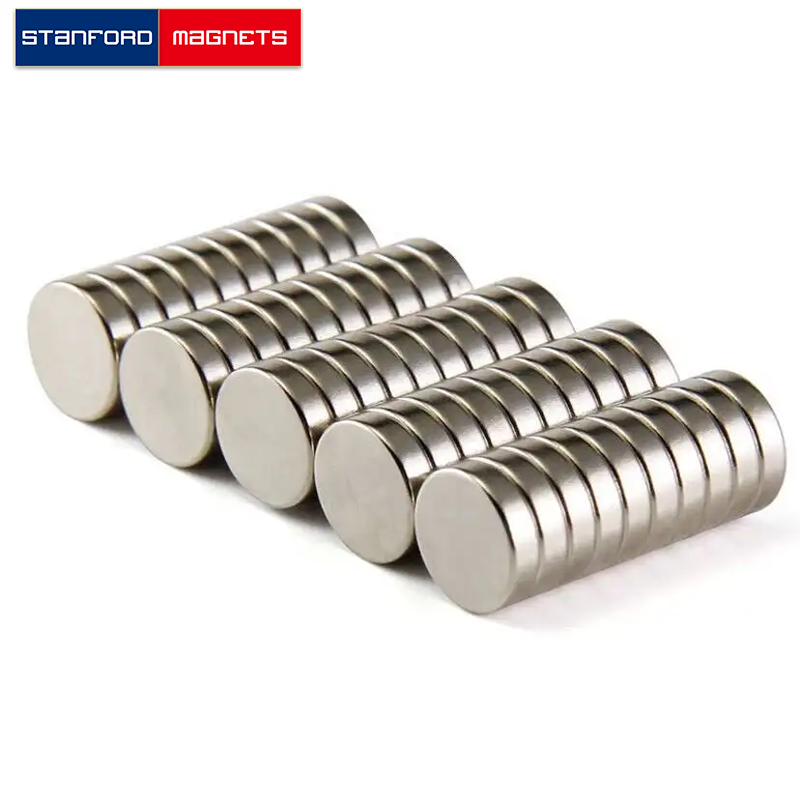

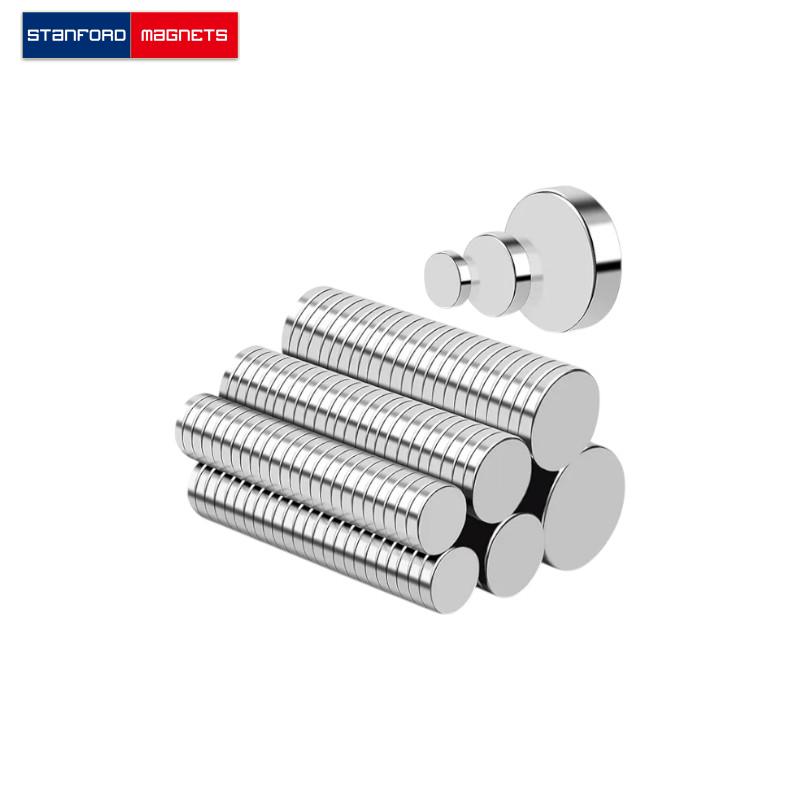

The SMDN0224 disc neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 1 1/2″ dia. × 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.239375 lbs. It can pull up to 89.33 lbs steel. And the surface field is up to 4105 gausses.
