SMDN0240 Neodymium Disc Magnet

Product ID: SMDN0240

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

TECHNICAL DATA SHEET

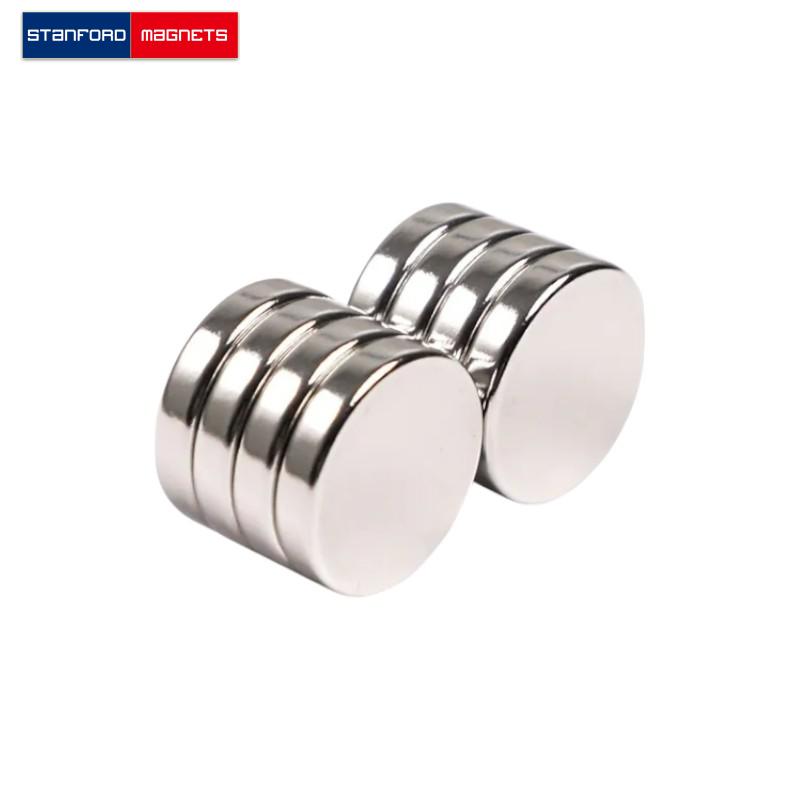

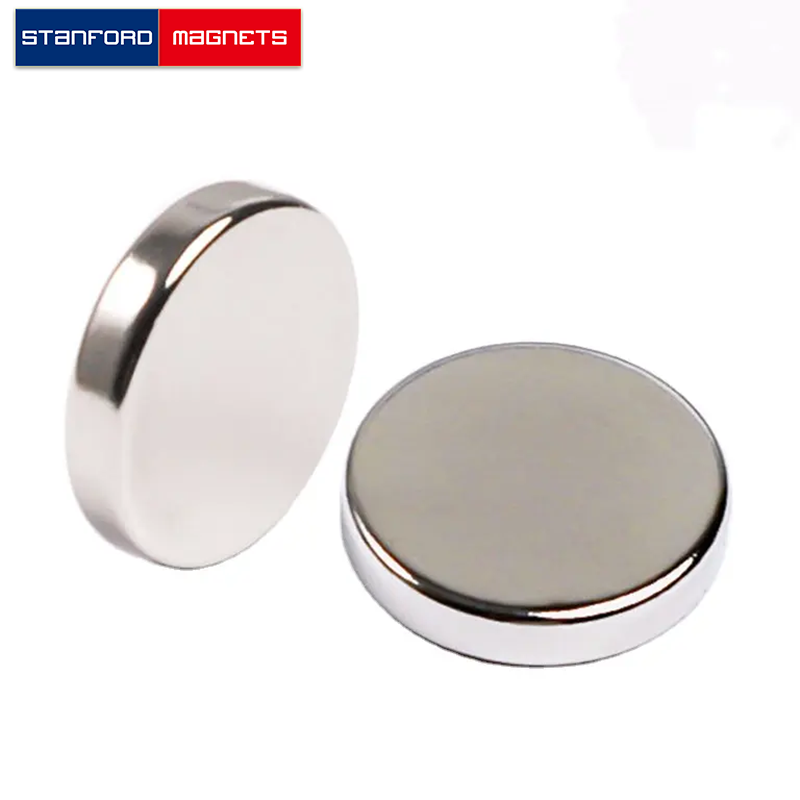

The SMDN0240 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 2 1/2" dia. × 1/4" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.3325 lbs. It can pull up to 54.7 lbs steel. And the surface field is up to 1294 gausses.

Download a PDF Specification Sheet

SPEC

Print to PDF

SPEC

GET A QUOTE

Send us an Inquiry now to find out more Information and the latest prices, thanks!

*Product Name

*Your Name

*Your Email

*Country

United States

*Your Phone

Comments

Attach Drawing:

Drop files here or

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

I Would like to join the mailing list to receive updates from Stanford Magnets.

* E-mail address with your company's domain name is preferred. Otherwise, we may not be able to process your inquiry.

SMDN0240 Neodymium Disc Magnet

SPEC
