SMDN0243 Neodymium DISC Magnet | Stanford Magnets

SMDN0243 Neodymium DISC Magnet

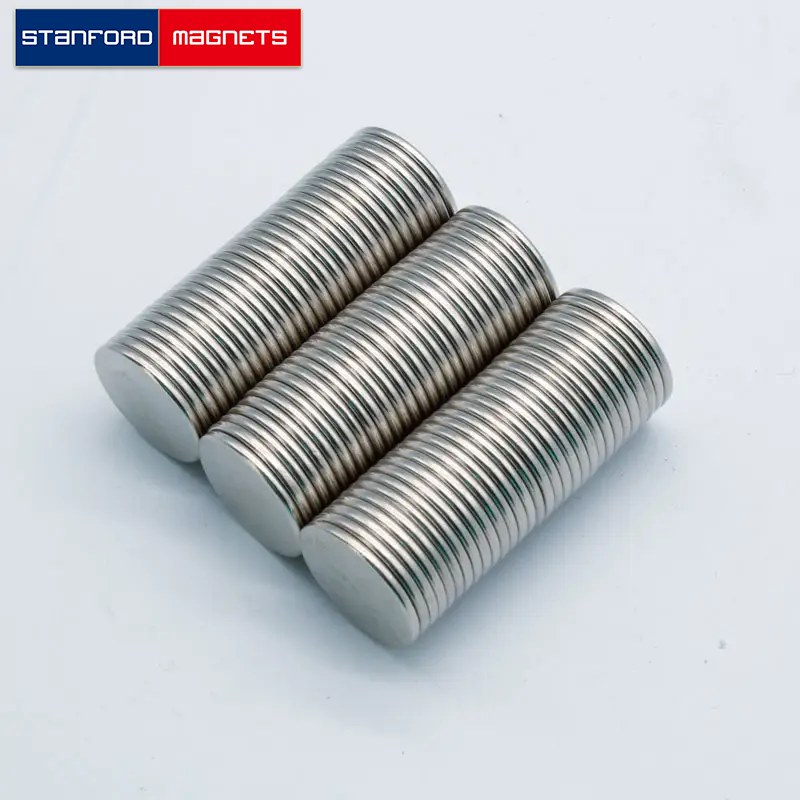

The SMDN0243 DISC neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3″ dia. × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.239375 lbs. It can pull up to 40.5 lbs steel. And the surface field is up to 548 gauss

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0243
Material: NdFeB
Shape: Disc
Dimension: 3” dia. x 1/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 3.83
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 40.5
Surface Field(Gauss): 548
Magnetization direction: Through Thickness
Magnetic Face: 3″ dia.
Max Operating Temp(C/F): 80/176
