SMDN0244 Neodymium Disc Magnet

Product ID: SMDN0244

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

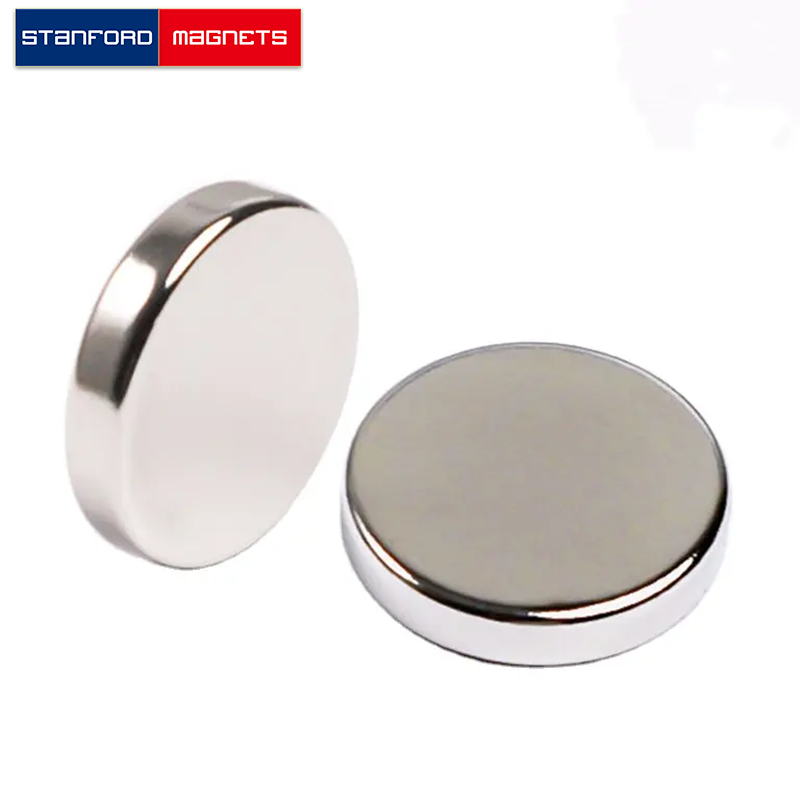

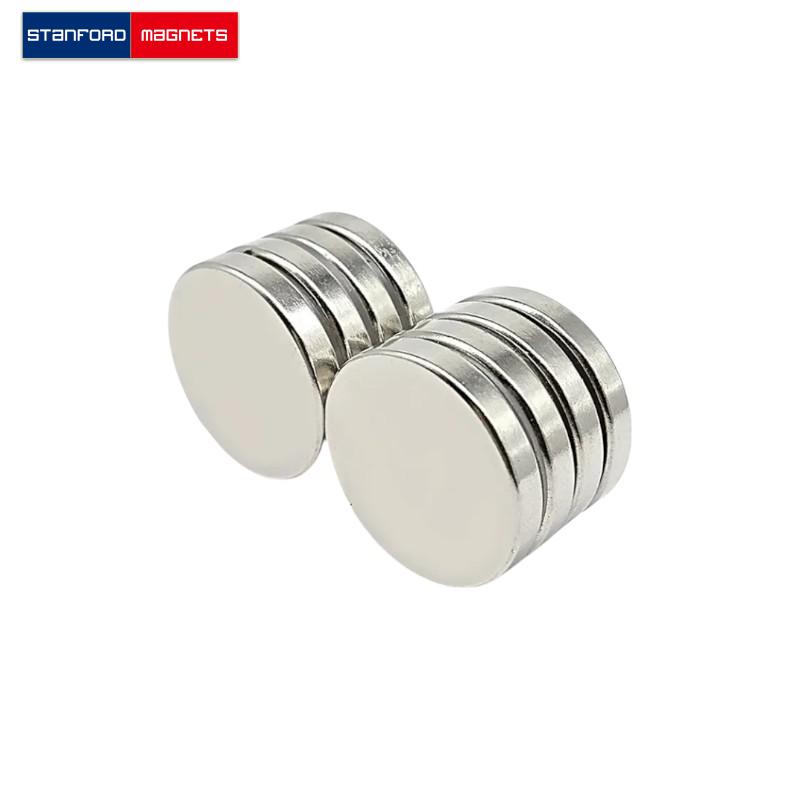

The SMDN0244 disc neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3" dia. × 1/4" thick, magnetized through thickness, with the tolerance of ±0.004" x ±0.004". The weight of this super strong neodymium magnet is 0.47875 lbs. It can pull up to 65 lbs steel. And the surface field is up to 1085 gausses.

Download a PDF Specification Sheet
