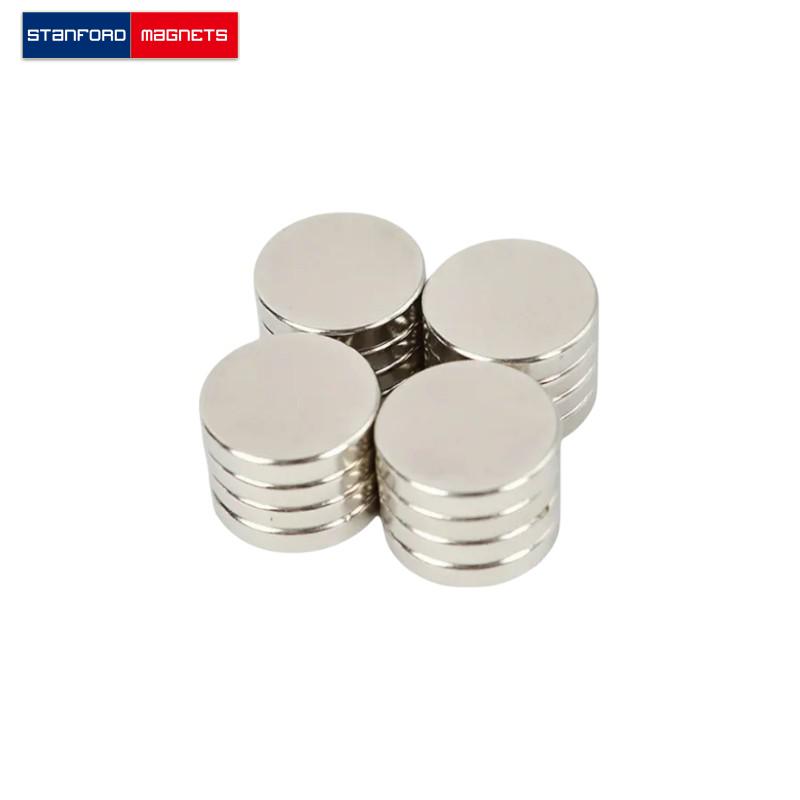

SMDN0250 Neodymium Disc Magnets

As Neodymium magnets are known as the strongest Rare Earth magnets, they are used in a wide range of applications, such as:healthcare,MRI and NMR,TWT (Transverse Wave Tube),Lifting Apparatus

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDN0250
Material: NdFeB
Shape: Disc
Dimension: 4” dia. x 1” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 54.49
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 717.8
Surface Field(Gauss): 3309
Magnetization direction: Through Thickness
Magnetic Face: 4″ dia.
Max Operating Temp(C/F): 80/176
