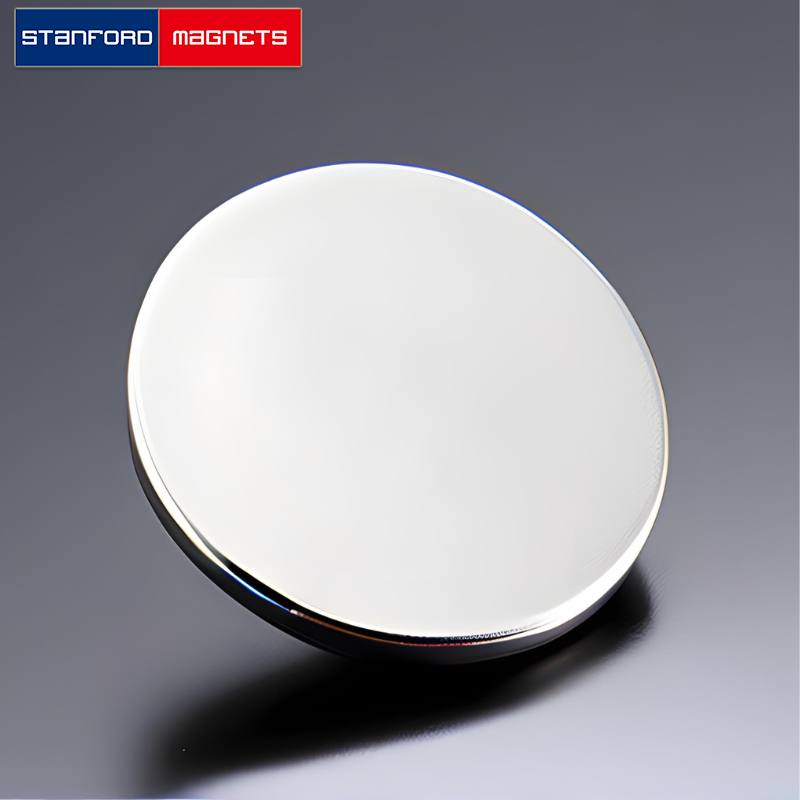

SMDS0006 SmCo Disc Magnet

Product ID: SMDS0006
Material: Sm2Co17
Shape: Disc
Dimension: 10mm dia x 5mm thickness
Grade: 26M
Coating: Magnets Requiring no Protective Coating
Pull Force(Lbs): 2.65
Surface Field(Gauss): 3000
Magnetization Direction: Through Thickness
Magnetic Face: 10mm dia
Max Operating Temp(C/F): 300/572

INQUIRY Can't Find The Size

Follow Us On


The SMDS0006 SmCo Disc Magnet is made from high-performance 26M Sm2Co17, without other protective coatings.

Applications: Computer disc drives, sensors, traveling wave tubes, linear actuators, satellite systems, and motors where temporary stability is vital.

Typical Magnetic Properties:

grade list

Processing Service: Casting, Milling, Mixing, Orientating&Pressing, Isostatic Pressing, Sintering, Magnetic Properties Inspection, Machining, Surface Treatment(If needed), Appearance/Dimensional Inspection, Magnetizing, Magnetic Inspection, Packaging


1. High resistance to demagnetization
2. High energy (magnetic strength is strong for its size)
3. Good temperature stability
