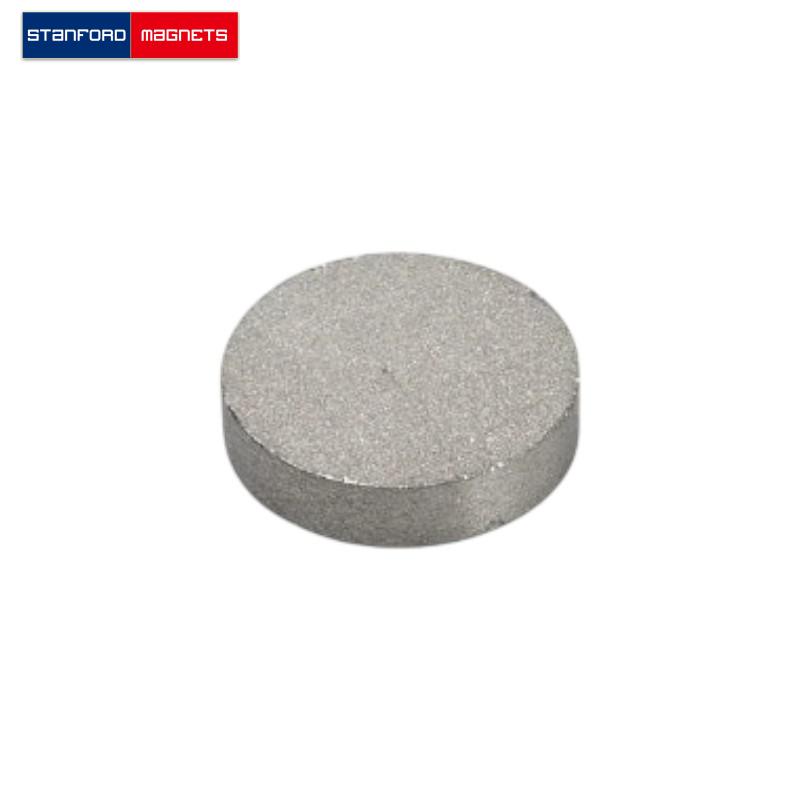

SMDS0012 SmCo Disc Magnet

The SMDS0012 SmCo Disc Magnet is made from high performance 26M Sm2Co17, without other protective coating. The dimension of this item is 1/4 Dia ?? 1/4″ Thickness, magnetized Through Thickness. The weight of this super strong smco magnet is 0.01 lbs.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMDS0012
Material: Sm2Co17
Shape: Disc
Dimension: 1/4 Dia x 1/4” Thickness
Weight(Oz.): 0.16
Grade: 26M
Coating: Magnets Requiring no Protective Coating
Magnetization direction: Through Thickness
Magnetic Face: 1/4 Dia
Max Operating Temp(C/F): 300/572
