SMDX08BR-N52 Rubber Coated Magnets - Stanford Magnets

SMDX08BR-N52 Rubber Coated Magnets

Dimensions: 1″ dia. x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Black Rubber Coated
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.40 oz. (39.7 g)
Pull Force, Case 1: 32.60 lbs
Pull Force, Case 2: 47.16 lbs
Surface Field: 4876 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

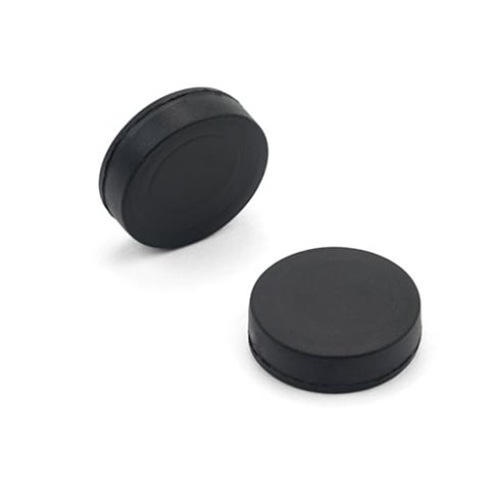

These is our popular 1″ diameter x 1/2″ thick neodymium disc magnet with a protective rubber coating.  The rubber coating is very much like tire rubber, which protects the magnet from impact damage and corrosion.  The rubber coating is very water resistant, but not recommended for underwater use, as the rubber seal is not guaranteed waterproof.
