SMMM-A-36 Metric Mounting Magnets

Dimensions:
D=36mm (1.42″)
d1=6.5mm (0.26″) (Sized for M6 screw)
d2=12mm (0.47″) (Tapered countersunk hole)
h=8mm (0.31″)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.71 oz. (48.5 g)
Pull Force: 63.9 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

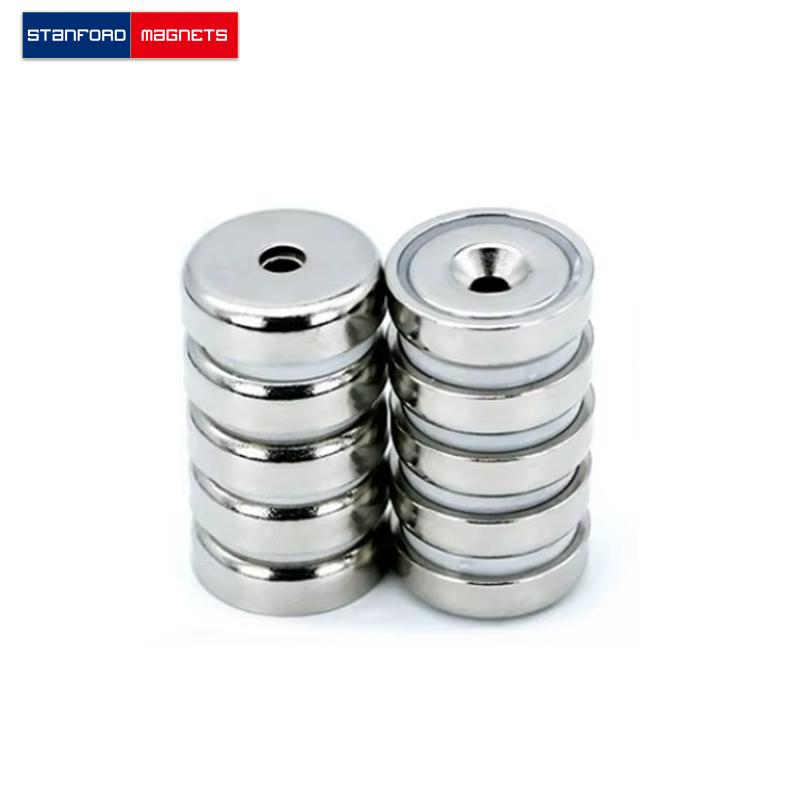

The SMMM-A-36 is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
