SMMM-A-60 Metric Mounting Magnets

Dimensions:
D=60mm (2.36″)
d1=8.5mm (0.33″) (Sized for M8 screw)
d2=16.5mm (0.65″) (Tapered countersunk hole)
h=15mm (0.59″)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 8.90 oz. (252 g)
Pull Force: 245.0 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

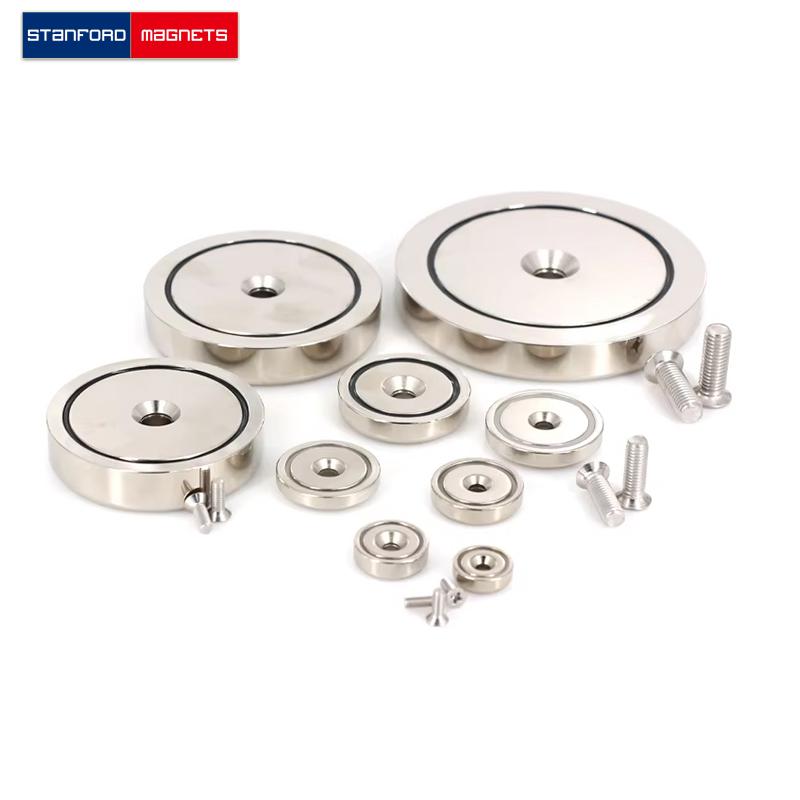

The SMMM-A-60 is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
