SMMM-A-75 Metric Mounting Magnets

Dimensions:
D=75mm (2.95″)
d1=10.5mm (0.41″) (Sized for M10 screw)
d2=19mm (0.75″) (Tapered countersunk hole)
h=18mm (0.71″)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 17.4 oz. (493 g)
Pull Force: 357 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

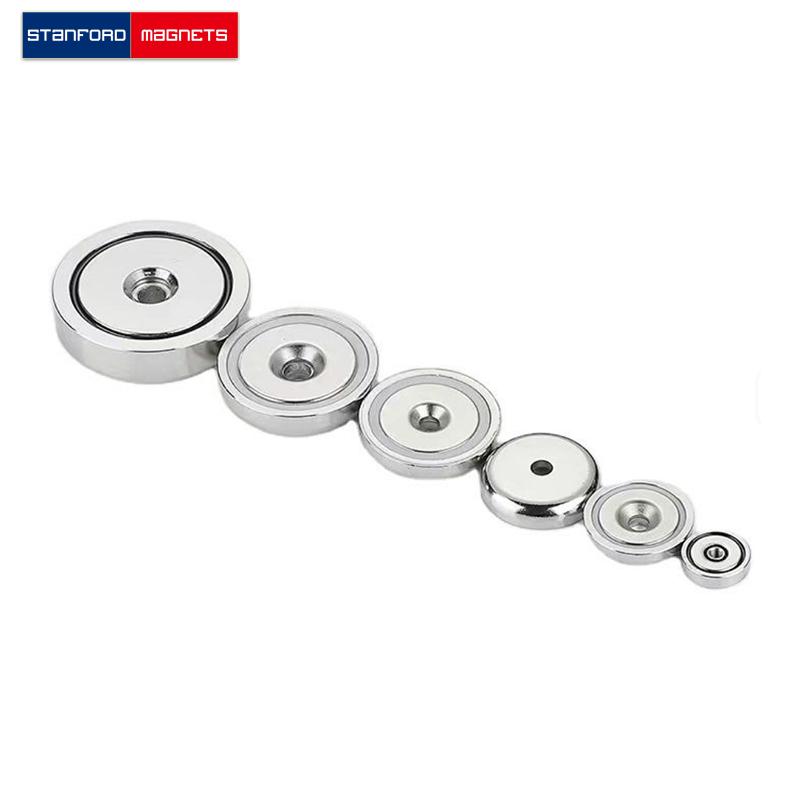

The SMMM-A-75 is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
