SMMM-C-16 Metric Mounting Magnets

Dimensions:
D=16mm (0.63″)
M=4mm (0.16″) (M4 Coarse Male threaded stud)
H=13mm (0.51″)
h=5mm (0.20″)
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.26 oz. (7.37 g)
Pull Force: 12.1 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

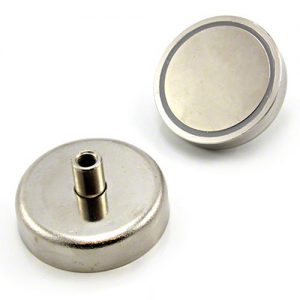

The SMMM-C-16 is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.
