SMMMR-A-ZX8 Rectangular Mounting Magnets - Stanford Magnets

SMMMR-A-ZX8 Rectangular Mounting Magnets

Dimensions:
Length= 4 1/2″ (4.50″)
Width= 1 1/2″ (1.50″)
Height= 1/2″ (0.5″)
Holes sized for 1/4″ flat-head screws
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 13.72 oz. (388.9 g)
Pull Force: 260.5 lbs
Brmax: 13,200 Gauss
BHmax: 42 MGOe

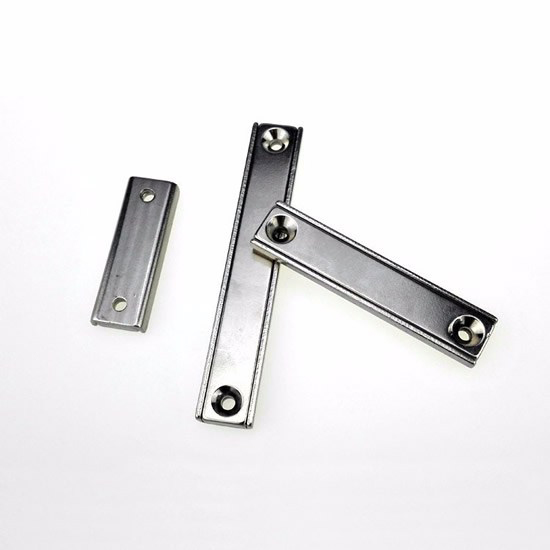

The SMMMR-A-ZX8 magnet is a rectangular, or bar shaped Neodymium Mounting Magnet.  It is our newest mounting magnet style, only available here!
This magnet has two tapered holes to recess screw heads.  It can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
