SMMMS-B-Y8 Standard Mounting Magnets - Stanford Magnets

SMMMS-B-Y8 Standard Mounting Magnets

Dimensions:
Diameter = 2 1/2″ (2.50″)
Hole Size = 3/8″ Screw
Height = 5/8″ (0.625″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 10.91 oz. (309.3 g)
Pull Force: 243.6 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

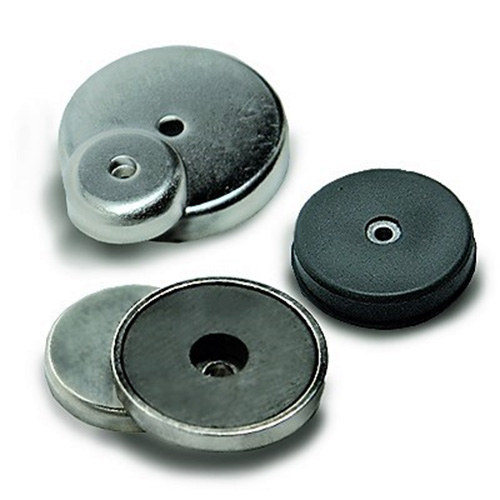

The SMMMS-B-Y8 is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
