SMMMS-C-X0 Standard Mounting Magnets

Dimensions:
Diameter = 1″ (1.00″)
Threaded Male Stud = #8-32 UNC 2A
Height = 1/4″ (0.250″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.810 oz. (22.96 g)
Pull Force: 40.64 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

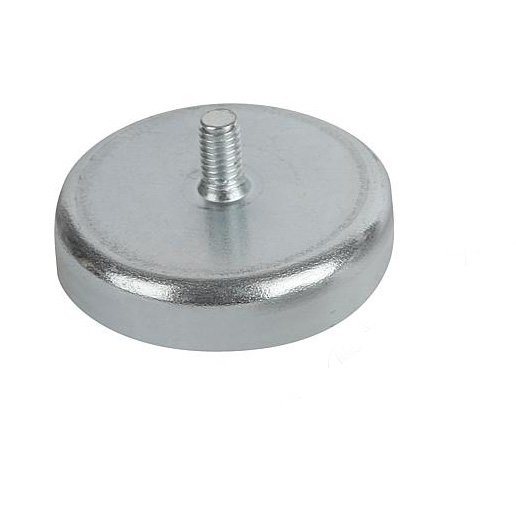

The SMMMS-C-X0 is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.
