SMMMS-H-C Standard Mounting Magnets - Stanford Magnets

SMMMS-H-C Standard Mounting Magnets

Dimensions:
Diameter = 3/4″ (0.750″)
Internal Thread Size = #6-32 UNC 2B
Height = 1/4″ (0.250″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.418 oz. (11.84 g)
Pull Force: 17.09 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

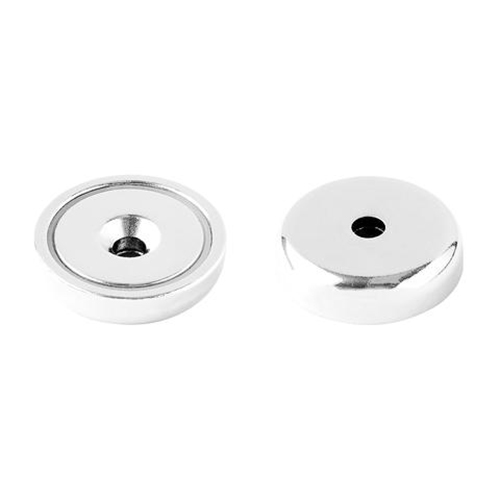

The SMMMS-H-C is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
