SMMMS-H-X0 Standard Mounting Magnets

Dimensions:
Diameter = 1″ (1.00″)
Internal Thread Size = #8-32 UNC 2B
Height = 1/4″ (0.250″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.776 oz. (22.0 g)
Pull Force: 37.73 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

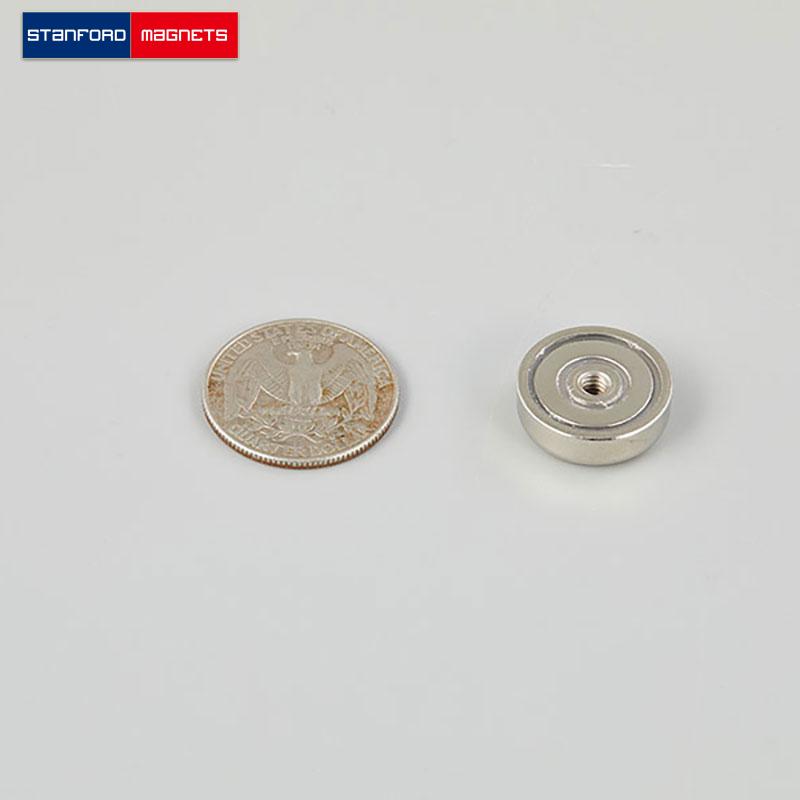

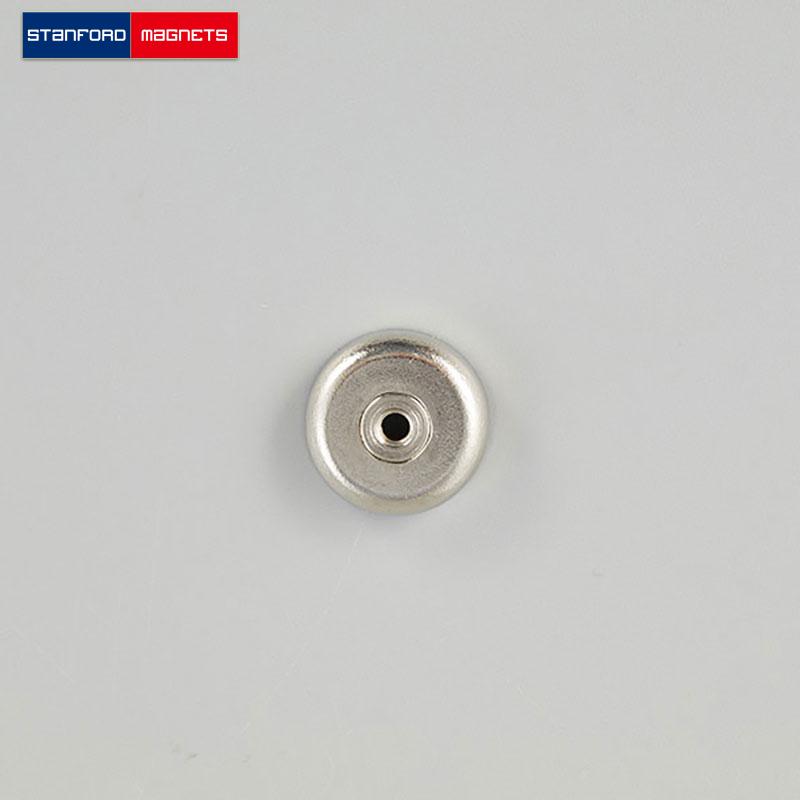

The SMMMS-H-X0 is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
